Paper Title:

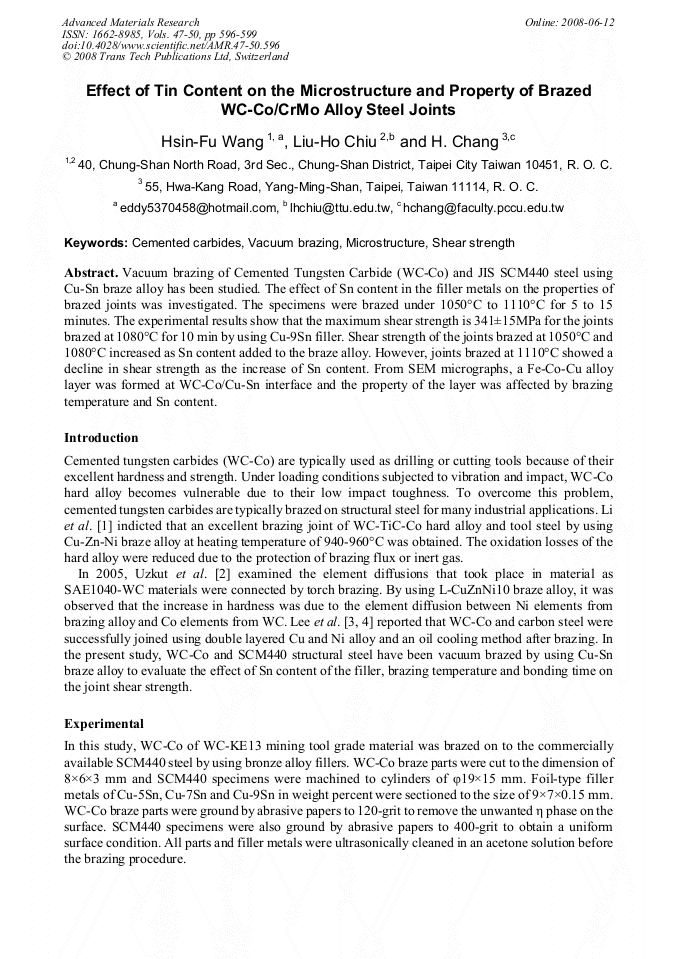

Effect of Tin Content on the Microstructure and Property of Brazed WC-Co/CrMo Alloy Steel Joints
  Abstract

Vacuum brazing of Cemented Tungsten Carbide (WC-Co) and JIS SCM440 steel using Cu-Sn braze alloy has been studied. The effect of Sn content in the filler metals on the properties of brazed joints was investigated. The specimens were brazed under 1050°C to 1110°C for 5 to 15 minutes. The experimental results show that the maximum shear strength is 341±15MPa for the joints brazed at 1080°C for 10 min by using Cu-9Sn filler. Shear strength of the joints brazed at 1050°C and 1080°C increased as Sn content added to the braze alloy. However, joints brazed at 1110°C showed a decline in shear strength as the increase of Sn content. From SEM micrographs, a Fe-Co-Cu alloy layer was formed at WC-Co/Cu-Sn interface and the property of the layer was affected by brazing temperature and Sn content.

  Info
Periodical
Advanced Materials Research (Volumes 47-50)
Edited by
Alan K.T. Lau, J. Lu, Vijay K. Varadan, F.K. Chang, J.P. Tu and P.M. Lam
Pages
596-599
DOI
10.4028/www.scientific.net/AMR.47-50.596
Citation
H. F. Wang, L. H. Chiu, H. Chang, "Effect of Tin Content on the Microstructure and Property of Brazed WC-Co/CrMo Alloy Steel Joints", Advanced Materials Research, Vols. 47-50, pp. 596-599, 2008
Online since
June 2008
