Paper Title:

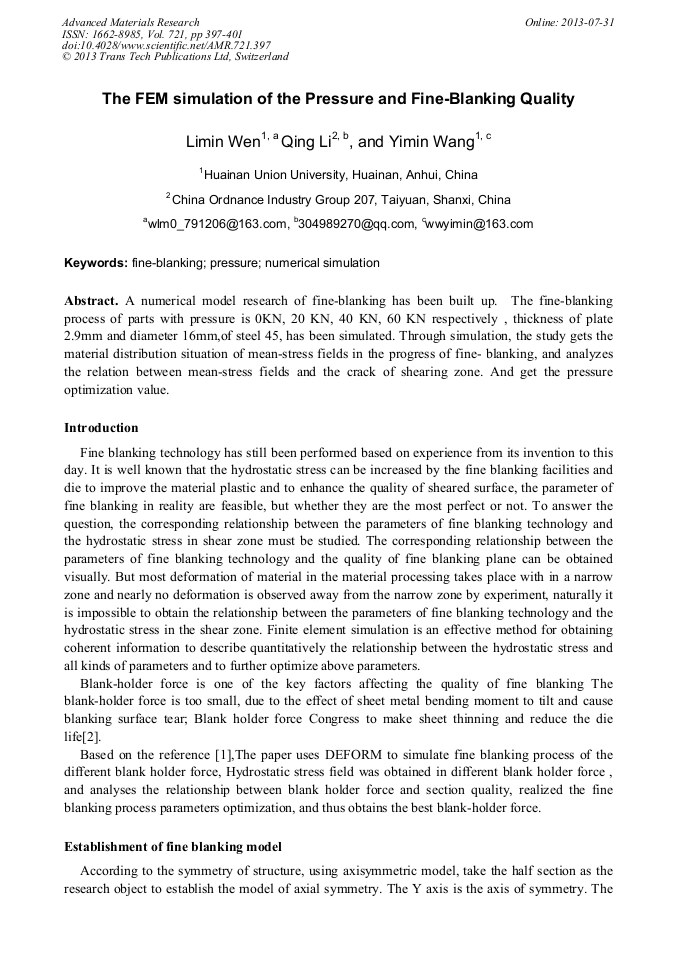

The FEM Simulation of the Pressure and Fine-Blanking Quality
  Abstract

A numerical model research of fine-blanking has been built up. The fine-blanking process of parts with pressure is 0KN20 KN40 KN60 KN respectively , thickness of plate 2.9mm and diameter 16mm,of steel 45, has been simulated. Through simulation, the study gets the material distribution situation of mean-stress fields in the progress of fine-blanking, and analyzes the relation between mean-stress fields and the crack of shearing zone. And get the pressure optimization value.

  Info
Periodical
Chapter
Chapter 2: Advanced Manufacturing and Control Technologies
Edited by
Qingzhou Xu
Pages
397-401
DOI
10.4028/www.scientific.net/AMR.721.397
Citation
L. M. Wen, Q. Li, Y. M. Wang, "The FEM Simulation of the Pressure and Fine-Blanking Quality", Advanced Materials Research, Vol. 721, pp. 397-401, 2013
Online since
July 2013
Export
Price
$32.00
