Prediction of Surface Roughness by 3D-CAD Model in Helical Scan Grinding and Groove Grinding
  Abstract

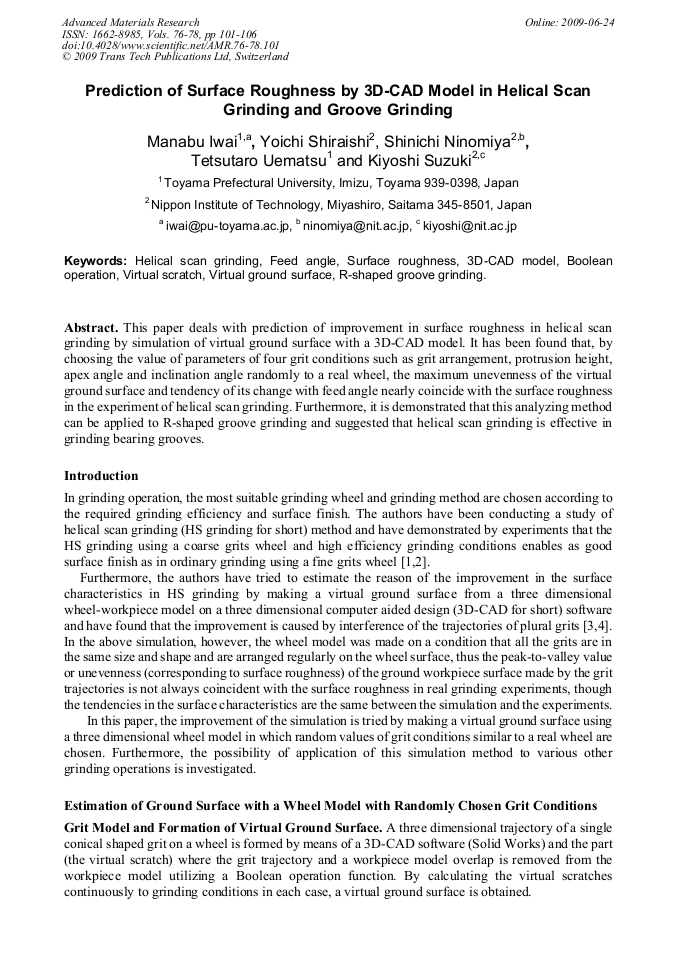

This paper deals with prediction of improvement in surface roughness in helical scan grinding by simulation of virtual ground surface with a 3D-CAD model. It has been found that, by choosing the value of parameters of four grit conditions such as grit arrangement, protrusion height, apex angle and inclination angle randomly to a real wheel, the maximum unevenness of the virtual ground surface and tendency of its change with feed angle nearly coincide with the surface roughness in the experiment of helical scan grinding. Furthermore, it is demonstrated that this analyzing method can be applied to R-shaped groove grinding and suggested that helical scan grinding is effective in grinding bearing grooves.
