Paper Title:

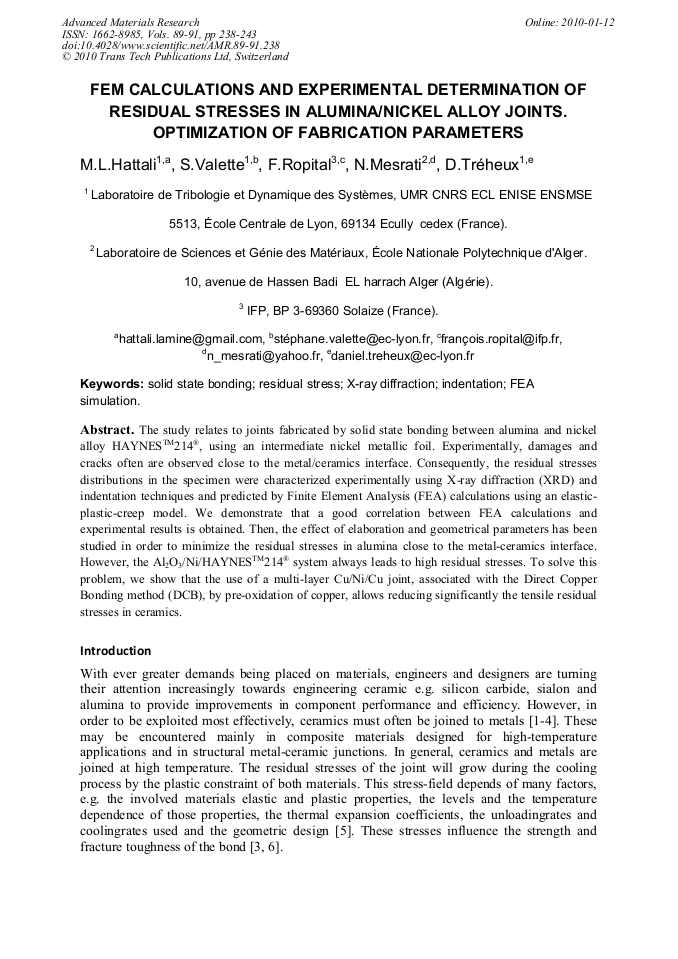

Fem Calculations and Experimental Determination of Residual Stresses in Alumina/Nickel Alloy Joints. Optimization of Fabrication Parameters
  Abstract

The study relates to joints fabricated by solid state bonding between alumina and nickel alloy HAYNESTM214®, using an intermediate nickel metallic foil. Experimentally, damages and cracks often are observed close to the metal/ceramics interface. Consequently, the residual stresses distributions in the specimen were characterized experimentally using X-ray diffraction (XRD) and indentation techniques and predicted by Finite Element Analysis (FEA) calculations using an elastic-plastic-creep model. We demonstrate that a good correlation between FEA calculations and experimental results is obtained. Then, the effect of elaboration and geometrical parameters has been studied in order to minimize the residual stresses in alumina close to the metal-ceramics interface. However, the Al2O3/Ni/HAYNESTM214® system always leads to high residual stresses. To solve this problem, we show that the use of a multi-layer Cu/Ni/Cu joint, associated with the Direct Copper Bonding method (DCB), by pre-oxidation of copper, allows reducing significantly the tensile residual stresses in ceramics.

  Info
Periodical
Advanced Materials Research (Volumes 89-91)
Edited by
T. Chandra, N. Wanderka, W. Reimers , M. Ionescu
Pages
238-243
DOI
10.4028/www.scientific.net/AMR.89-91.238
Citation
M.L. Hattali, S. Valette, F. Ropital, N. Mesrati, D. Treheux, "Fem Calculations and Experimental Determination of Residual Stresses in Alumina/Nickel Alloy Joints. Optimization of Fabrication Parameters", Advanced Materials Research, Vols. 89-91, pp. 238-243, 2010
Online since
January 2010
Export
Price
$32.00
