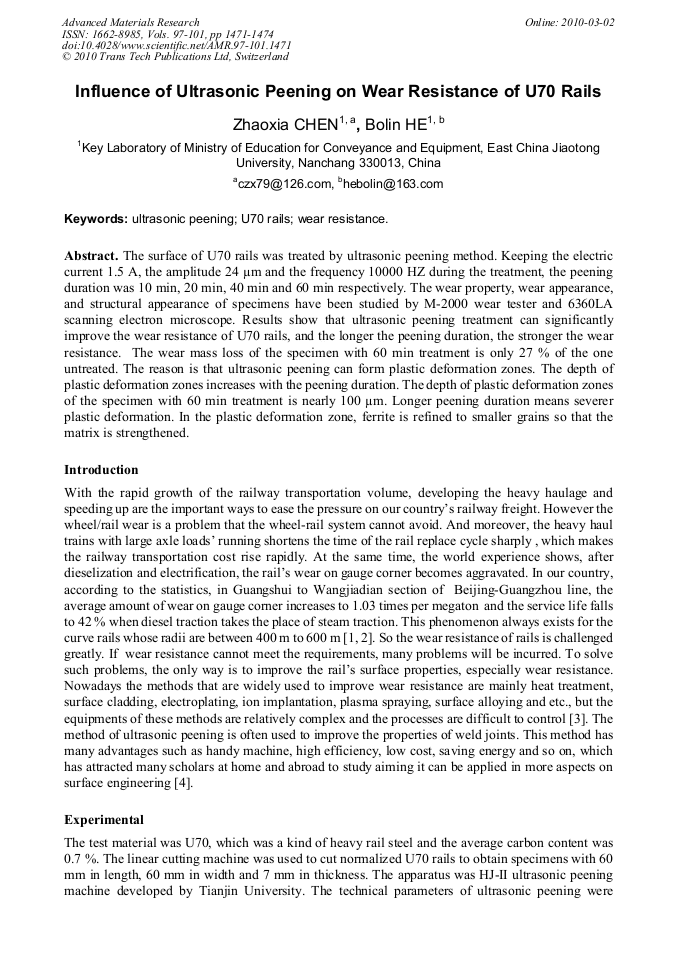

Paper Title:
Influence of Ultrasonic Peening on Wear Resistance of U70 Rails
  Abstract

The surface of U70 rails was treated by ultrasonic peening method. Keeping the electric current 1.5 A, the amplitude 24 µm and the frequency 10000 HZ during the treatment, the peening duration was 10 min, 20 min, 40 min and 60 min respectively. The wear property, wear appearance, and structural appearance of specimens have been studied by M-2000 wear tester and 6360LA scanning electron microscope. Results show that ultrasonic peening treatment can significantly improve the wear resistance of U70 rails, and the longer the peening duration, the stronger the wear resistance. The wear mass loss of the specimen with 60 min treatment is only 27 % of the one untreated. The reason is that ultrasonic peening can form plastic deformation zones. The depth of plastic deformation zones increases with the peening duration. The depth of plastic deformation zones of the specimen with 60 min treatment is nearly 100 µm. Longer peening duration means severer plastic deformation. In the plastic deformation zone, ferrite is refined to smaller grains so that the matrix is strengthened.

  Info
Periodical
Advanced Materials Research (Volumes 97-101)
Edited by
Zhengyi Jiang and Chunliang Zhang
Pages
1471-1474
DOI
10.4028/www.scientific.net/AMR.97-101.1471
Citation
Z. X. Chen, B. L. He, "Influence of Ultrasonic Peening on Wear Resistance of U70 Rails", Advanced Materials Research, Vols. 97-101, pp. 1471-1474, 2010
Online since
March 2010
Export
Price
$32.00
Share

In order to see related information, you need to Login.

In order to see related information, you need to Login.

Authors: Yan Li, Xiao Hong Chen, Ping Liu, Lin Hua Gao, Bao Hong Tian
Abstract:The behavior of plastic deformation of Cu-15Cr-0.1Zr in-situ composite under different degree of cold drawing deformation was analyzed by...
2191
Authors: Shan Shan Hu, Cheng Yong Wang, Ying Ning Hu, C.B. Pan, X.Q. Lu
Abstract:Material fracture character of marble processing by single diamond tools was studied by single diamond indentation experiment and fast...
342
Authors: J.E. Darnbrough, S. Mahalingam, Peter E.J. Flewitt
Abstract:t is increasingly a requirement to be able to determine the mechanical properties of materials: (i) at the micro-scale, (ii) that are in the...
57
Authors: Feng Zhao, Ling Yong Cao, Yu Jing Lang, Hua Cui, Lin Zhong Zhuang, Ji Shan Zhang
Abstract:The diversities and relations of microstructures and properties between the center and surface layer in thick-plate 7150 alloy were...
250
Authors: S.R. Harisha, S.S. Sharma, Achutha Kini
Chapter 3: Research and Testing of Materials
Abstract:The high temperature phase austenite in steel has the property to transform into a variety of room temperature phases like coarse pearlite,...
136
