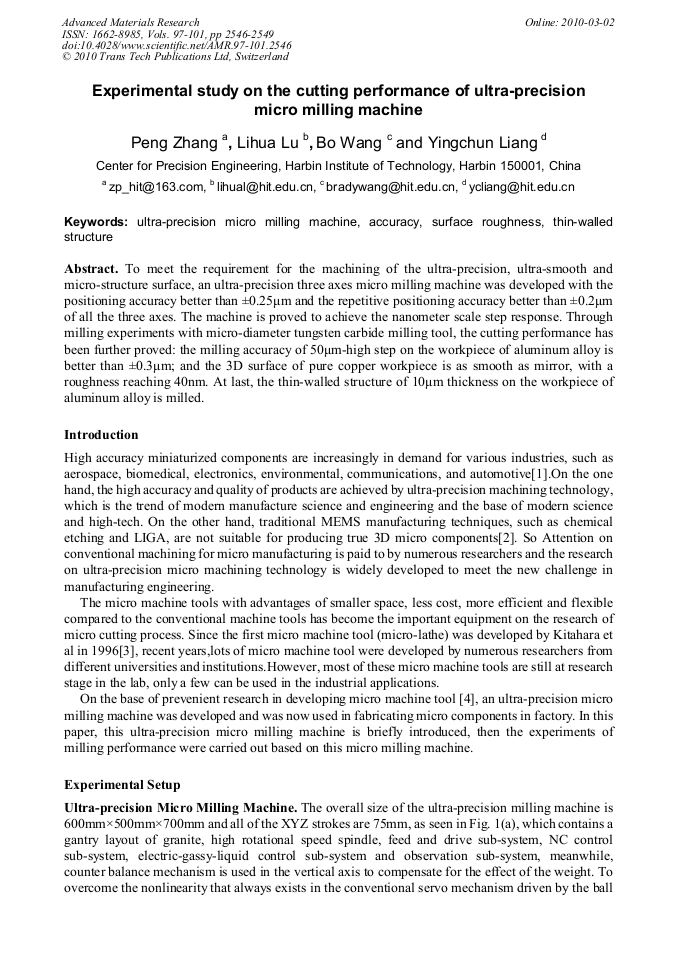

Experimental Study on the Cutting Performance of Ultra-Precision Micro Milling Machine
  Abstract

To meet the requirement for the machining of the ultra-precision, ultra-smooth and micro-structure surface, an ultra-precision three axes micro milling machine was developed with the positioning accuracy better than ±0.25μm and the repetitive positioning accuracy better than ±0.2μm of all the three axes. The machine is proved to achieve the nanometer scale step response. Through milling experiments with micro-diameter tungsten carbide milling tool, the cutting performance has been further proved: the milling accuracy of 50μm-high step on the workpiece of aluminum alloy is better than ±0.3μm; and the 3D surface of pure copper workpiece is as smooth as mirror, with a roughness reaching 40nm. At last, the thin-walled structure of 10μm thickness on the workpiece of aluminum alloy is milled.

  Info
Periodical
Advanced Materials Research (Volumes 97-101)
Edited by
Zhengyi Jiang and Chunliang Zhang
Pages
2546-2549
DOI
10.4028/www.scientific.net/AMR.97-101.2546
Citation
P. Zhang, L. H. Lu, B. Wang, Y. C. Liang, "Experimental Study on the Cutting Performance of Ultra-Precision Micro Milling Machine", Advanced Materials Research, Vols. 97-101, pp. 2546-2549, 2010
