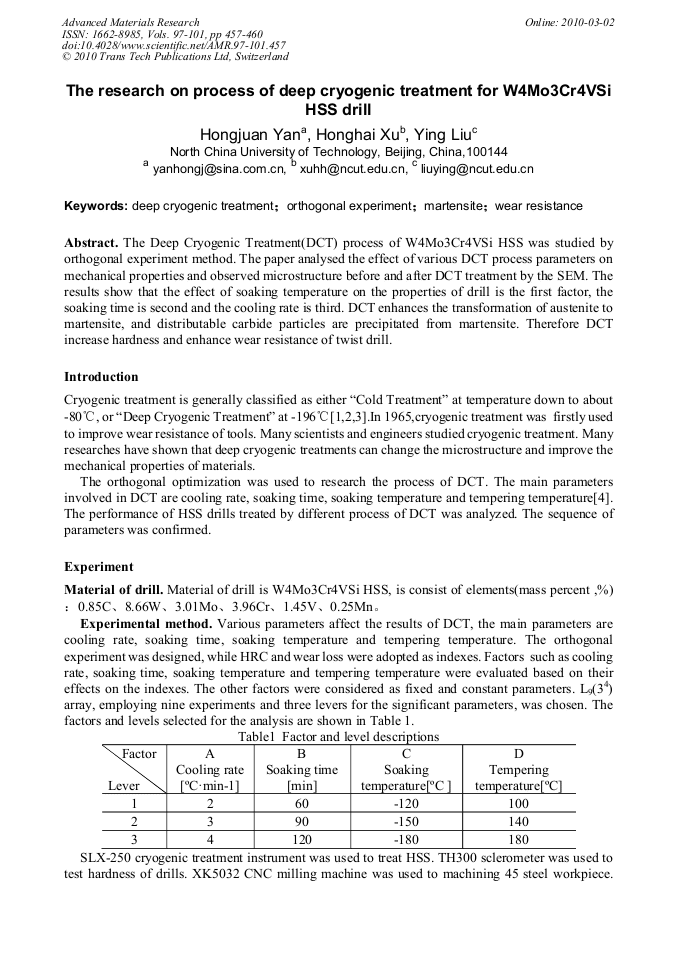

Paper Title:
The Research on Process of Deep Cryogenic Treatment for W4Mo3Cr4VSi HSS Drill
  Abstract

The Deep Cryogenic Treatment(DCT) process of W4Mo3Cr4VSi HSS was studied by orthogonal experiment method. The paper analysed the effect of various DCT process parameters on mechanical properties and observed microstructure before and after DCT treatment by the SEM. The results show that the effect of soaking temperature on the properties of drill is the first factor, the soaking time is second and the cooling rate is third. DCT enhances the transformation of austenite to martensite, and distributable carbide particles are precipitated from martensite. Therefore DCT increase hardness and enhance wear resistance of twist drill.

  Info
Periodical
Advanced Materials Research (Volumes 97-101)
Edited by
Zhengyi Jiang and Chunliang Zhang
Pages
457-460
DOI
10.4028/www.scientific.net/AMR.97-101.457
Citation
H. J. Yan, H. H. Xu, Y. Liu, "The Research on Process of Deep Cryogenic Treatment for W4Mo3Cr4VSi HSS Drill", Advanced Materials Research, Vols. 97-101, pp. 457-460, 2010
Online since
March 2010
Export
Price
$32.00
Share

In order to see related information, you need to Login.

In order to see related information, you need to Login.

Authors: Ignacy Wierszyłłowski
Abstract:A significant increase in durability of cryogenically treated tools after quenching was reported by a number of publications [1, 2]. As...
415
Authors: Guo Bin Li, Zheng Zhi Zhao, Di Tang
Abstract:The microstructure evolution of 780 MPa hot dip galvanized dual-phase (DP) steel at heating stages of the annealing process was analyzed...
1331
Authors: You Ping Ma, Xiu Lan Li, Lei Yang
Abstract:The effect of carbon content on primary austenite stability of high chromium white cast iron(15.0wt.%) was investigated by means of optical...
1684
Authors: Li Yang, Ying Huai Qiang, Fu Shan Chen, Yang Gao, Yun Tian Zhong
Surface Engineering/Coatings
Abstract:To improve wear resistance and service life of boron cast iron cylinder, plasma beam hardening on surface is adopted.Scanning electron...
98
Authors: Yong Qing Ma, Yu Mei Dai, Yu Fen Liang, Xiao Jing Zhang
Chapter 2: Materials Science and Engineering
Abstract:The temper-resistance temperature of Cr-W-Mo-V high carbon medium alloy steels is in a range at 200°C-300°C. Along with increasing C and...
591
