Paper Title:
In Situ Investigation of Debinding of Non-Oxide Ceramic
  Abstract

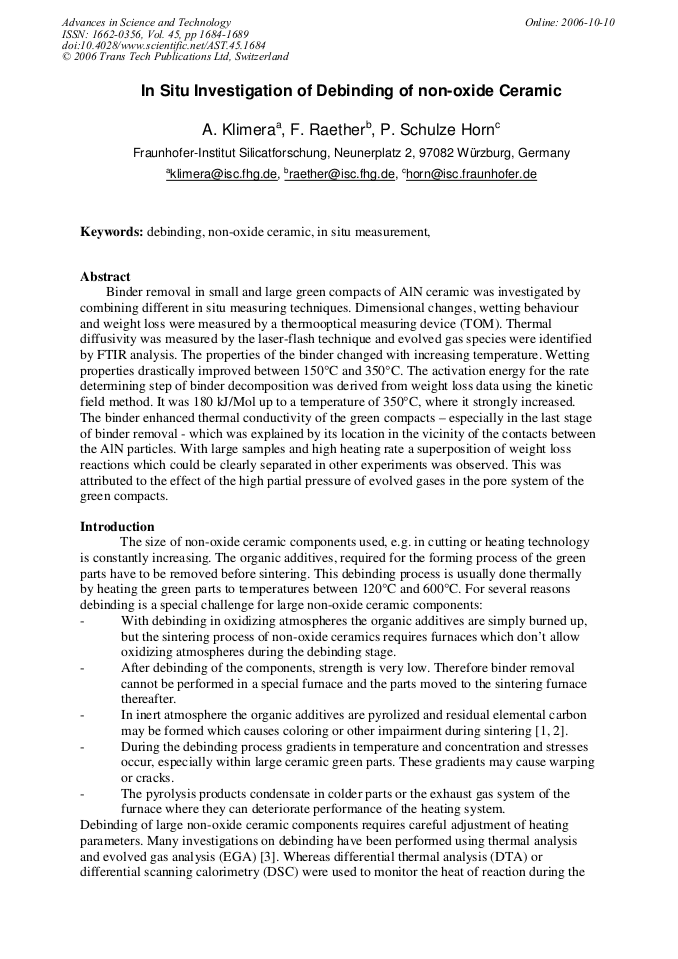

Binder removal in small and large green compacts of AlN ceramic was investigated by combining different in situ measuring techniques. Dimensional changes, wetting behaviour and weight loss were measured by a thermooptical measuring device (TOM). Thermal diffusivity was measured by the laser-flash technique and evolved gas species were identified by FTIR analysis. The properties of the binder changed with increasing temperature. Wetting properties drastically improved between 150°C and 350°C. The activation energy for the rate determining step of binder decomposition was derived from weight loss data using the kinetic field method. It was 180 kJ/Mol up to a temperature of 350°C, where it strongly increased. The binder enhanced thermal conductivity of the green compacts – especially in the last stage of binder removal - which was explained by its location in the vicinity of the contacts between the AlN particles. With large samples and high heating rate a superposition of weight loss reactions which could be clearly separated in other experiments was observed. This was attributed to the effect of the high partial pressure of evolved gases in the pore system of the green compacts.

  Info
Periodical
Edited by
P. VINCENZINI
Pages
1684-1689
DOI
10.4028/www.scientific.net/AST.45.1684
Citation
A. Klimera, F. Raether, P. Schulze Horn, "In Situ Investigation of Debinding of Non-Oxide Ceramic ", Advances in Science and Technology, Vol. 45, pp. 1684-1689, 2006
Online since
October 2006
Export
Price
$32.00
Share

In order to see related information, you need to Login.

In order to see related information, you need to Login.

Authors: Minoru Takahashi, Koichiro Adachi, Ruben L. Menchavez, Masayoshi Fuji
Abstract:In this study, we propose a new process to fabricate electrically conductive alumina by gelcasting and reduction sintering. The process used...
657
Authors: Shoichi Kume, Masaki Yasuoka, Naoki Omura, Koji Watari
Abstract:The effects of sintering additives on dielectric loss tangent of AlN ceramics were explored. Different amounts of Y2O3 and TiO2 were...
845
Authors: Akira Kishimoto, Tetsuya Morimoto, Hidetaka Hayashi
Abstract:By using 24 GHz millimeter-wave irradiation, full densification of AlN added with Y2O3 was attained at 1700 °C, which is comparable to...
533
Authors: Rosa Maria da Rocha, Francisco Cristóvão Lourenço de Melo
Abstract:The effect of three different sintering additive systems on densification of boron carbide powder was investigated. The sintering additives...
170
Authors: Hiroshi Fukushima, Masanobu Azuma, Yukihiro Kanechika
Abstract:A high temperature HRTEM holder equipped with a W-coil heater was used to make insitu observation of high temperature behavior of Al2O3 very...
123
