Paper Title:
Grain Boundary Defects in ZnO Ceramic Doped with Mo

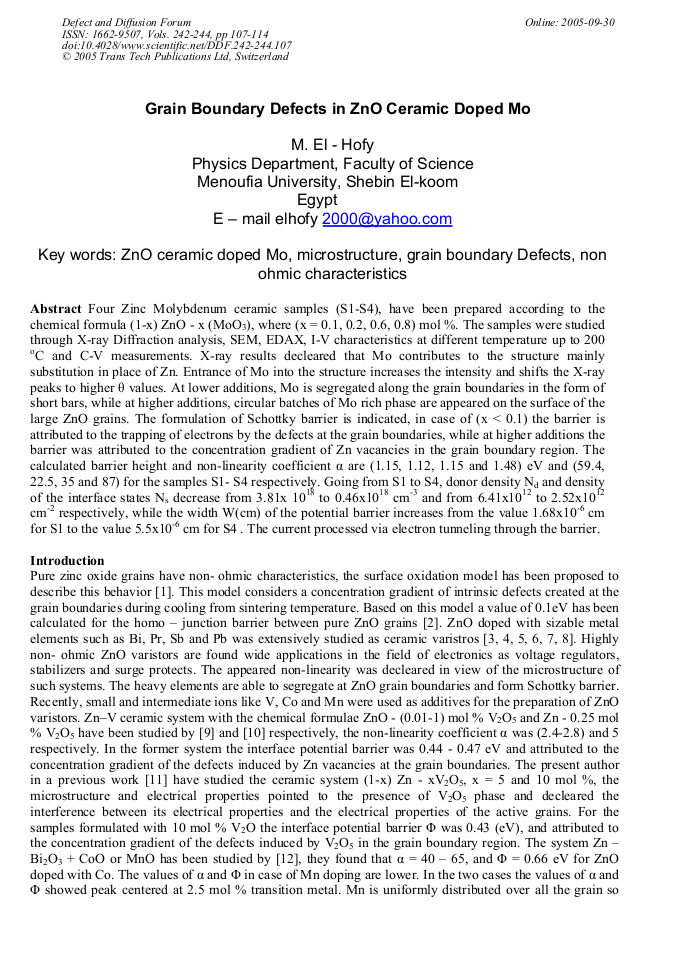

  Abstract

Four Zinc Molybdenum ceramic samples (S1-S4), have been prepared according to the chemical formula (1-x) ZnO - x (MoO3), where (x = 0.1, 0.2, 0.6, 0.8) mol %. The samples were studied through X-ray Diffraction analysis, SEM, EDAX, I-V characteristics at different temperature up to 200 οC and C-V measurements. X-ray results decleared that Mo contributes to the structure mainly substitution in place of Zn. Entrance of Mo into the structure increases the intensity and shifts the X-ray peaks to higher θ values. At lower additions, Mo is segregated along the grain boundaries in the form of short bars, while at higher additions, circular batches of Mo rich phase are appeared on the surface of the large ZnO grains. The formulation of Schottky barrier is indicated, in case of (x < 0.1) the barrier is attributed to the trapping of electrons by the defects at the grain boundaries, while at higher additions the barrier was attributed to the concentration gradient of Zn vacancies in the grain boundary region. The calculated barrier height and non-linearity coefficient α are (1.15, 1.12, 1.15 and 1.48) eV and (59.4, 22.5, 35 and 87) for the samples S1- S4 respectively. Going from S1 to S4, donor density Nd and density of the interface states Ns decrease from 3.81x 1018 to 0.46x1018 cm-3 and from 6.41x1012 to 2.52x1012 cm-2 respectively, while the width W(cm) of the potential barrier increases from the value 1.68x10-6 cm for S1 to the value 5.5x10-6 cm for S4 . The current processed via electron tunneling through the barrier.

  Info
Periodical
Defect and Diffusion Forum (Volumes 242-244)
Edited by
David J. Fisher
Pages
107-114
DOI
10.4028/www.scientific.net/DDF.242-244.107
Citation
M. El-Hofy, "Grain Boundary Defects in ZnO Ceramic Doped with Mo ", Defect and Diffusion Forum, Vols. 242-244, pp. 107-114, 2005
Online since
September 2005
Authors
Export
Price
$32.00
