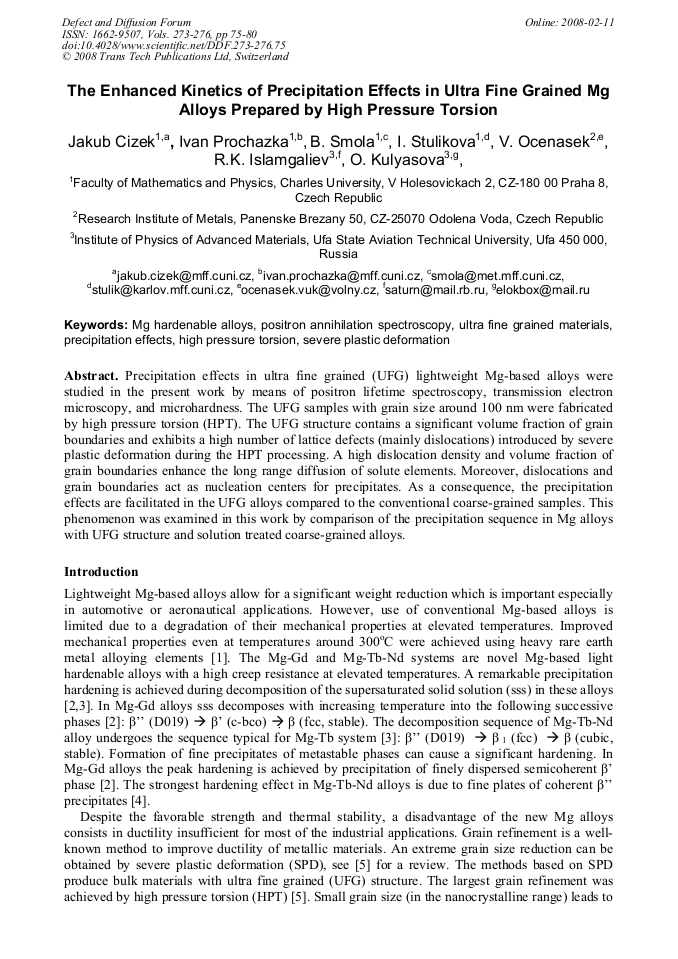

Paper Title:
The Enhanced Kinetics of Precipitation Effects in Ultra Fine Grained Mg Alloys Prepared by High Pressure Torsion
  Abstract

Precipitation effects in ultra fine grained (UFG) lightweight Mg-based alloys were studied in the present work by means of positron lifetime spectroscopy, transmission electron microscopy, and microhardness. The UFG samples with grain size around 100 nm were fabricated by high pressure torsion (HPT). The UFG structure contains a significant volume fraction of grain boundaries and exhibits a high number of lattice defects (mainly dislocations) introduced by severe plastic deformation during the HPT processing. A high dislocation density and volume fraction of grain boundaries enhance the long range diffusion of solute elements. Moreover, dislocations and grain boundaries act as nucleation centers for precipitates. As a consequence, the precipitation effects are facilitated in the UFG alloys compared to the conventional coarse-grained samples. This phenomenon was examined in this work by comparison of the precipitation sequence in Mg alloys with UFG structure and solution treated coarse-grained alloys.

  Info
Periodical
Defect and Diffusion Forum (Volumes 273-276)
Edited by
Andreas Öchsner and Graeme E. Murch
Pages
75-80
DOI
10.4028/www.scientific.net/DDF.273-276.75
Citation
J. Čížek, I. Procházka, B. Smola, I. Stulíková, V. Očenášek, R. K. Islamgaliev, O. B. Kulyasova, "The Enhanced Kinetics of Precipitation Effects in Ultra Fine Grained Mg Alloys Prepared by High Pressure Torsion", Defect and Diffusion Forum, Vols. 273-276, pp. 75-80, 2008
Online since
February 2008
Export
Price
$32.00
Share

In order to see related information, you need to Login.

In order to see related information, you need to Login.

Authors: I. Schiller, Jenő Gubicza, Zsolt Kovács, Nguyen Q. Chinh, Judit Illy
Abstract:Supersaturated Al-4.8Zn-1.2Mg-0.14Zr and Al-5.7Zn-1.9Mg-0.35Cu (wt.%) alloys were processed by Equal-Channel Angular Pressing (ECAP) at...
835
Authors: Dalibor Vojtěch, Alena Michalcová
Abstract:Nearly equi-atomic Ni-Ti alloys (nitinol) show shape memory behavior, superelasticity, high strength, excellent corrosion resistance and...
471
Authors: Cheng Dong Xia, Ming Pu Wang, Gen Ying Xu, Wan Zhang, Yan Lin Jia, Hong Chun Yu
Abstract:The microstructure and properties of Cu-0.4wt%Cr alloys prepared by a shortened process and a conventional process were investigated by means...
1890
