Paper Title:

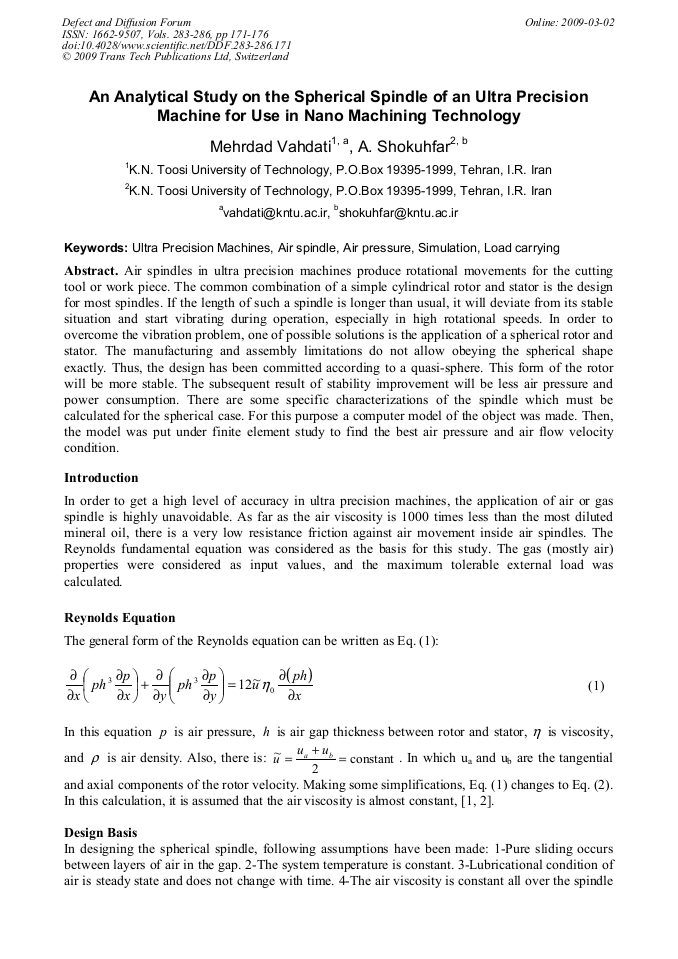

An Analytical Study on the Spherical Spindle of an Ultra Precision Machine for Use in Nano Machining Technology
  Abstract

Air spindles in ultra precision machines produce rotational movements for the cutting tool or work piece. The common combination of a simple cylindrical rotor and stator is the design for most spindles. If the length of such a spindle is longer than usual, it will deviate from its stable situation and start vibrating during operation, especially in high rotational speeds. In order to overcome the vibration problem, one of possible solutions is the application of a spherical rotor and stator. The manufacturing and assembly limitations do not allow obeying the spherical shape exactly. Thus, the design has been committed according to a quasi-sphere. This form of the rotor will be more stable. The subsequent result of stability improvement will be less air pressure and power consumption. There are some specific characterizations of the spindle which must be calculated for the spherical case. For this purpose a computer model of the object was made. Then, the model was put under finite element study to find the best air pressure and air flow velocity condition.

  Info
Periodical
Defect and Diffusion Forum (Volumes 283-286)
Edited by
Andreas Öchsner, Graeme E. Murch and Ali Shokuhfar
Pages
171-176
DOI
10.4028/www.scientific.net/DDF.283-286.171
Citation
M. Vahdati, A. Shokuhfar, "An Analytical Study on the Spherical Spindle of an Ultra Precision Machine for Use in Nano Machining Technology", Defect and Diffusion Forum, Vols. 283-286, pp. 171-176, 2009
Online since
March 2009
Export
Price
$32.00
