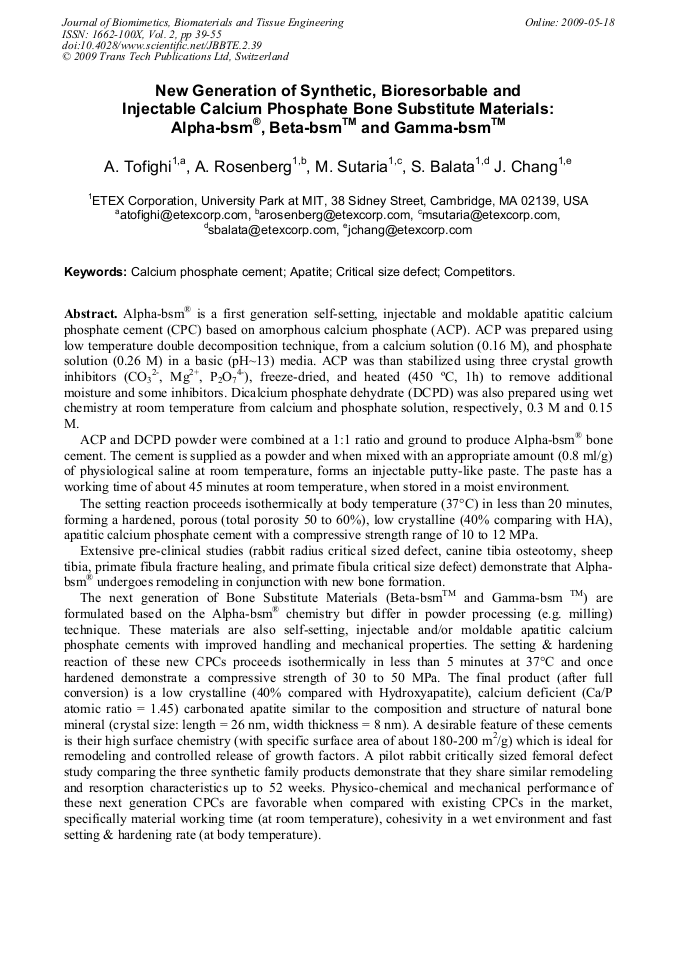

New Generation of Synthetic, Bioresorbable and Injectable Calcium Phosphate Bone Substitute Materials: Alpha-bsm^®, Beta-bsm^TM and Gamma-bsm^TM

Alpha-bsm® is a first generation self-setting, injectable and moldable apatitic calcium phosphate cement (CPC) based on amorphous calcium phosphate (ACP). ACP was prepared using low temperature double decomposition technique, from a calcium solution (0.16 M), and phosphate solution (0.26 M) in a basic (pH~13) media. ACP was than stabilized using three crystal growth inhibitors (CO32-, Mg2+, P2O74-), freeze-dried, and heated (450 ºC, 1h) to remove additional moisture and some inhibitors. Dicalcium phosphate dehydrate (DCPD) was also prepared using wet chemistry at room temperature from calcium and phosphate solution, respectively, 0.3 M and 0.15 M. ACP and DCPD powder were combined at a 1:1 ratio and ground to produce Alpha-bsm® bone cement. The cement is supplied as a powder and when mixed with an appropriate amount (0.8 ml/g) of physiological saline at room temperature, forms an injectable putty-like paste. The paste has a working time of about 45 minutes at room temperature, when stored in a moist environment. The setting reaction proceeds isothermically at body temperature (37°C) in less than 20 minutes, forming a hardened, porous (total porosity 50 to 60%), low crystalline (40% comparing with HA), apatitic calcium phosphate cement with a compressive strength range of 10 to 12 MPa. Extensive pre-clinical studies (rabbit radius critical sized defect, canine tibia osteotomy, sheep tibia, primate fibula fracture healing, and primate fibula critical size defect) demonstrate that Alpha-bsm® undergoes remodeling in conjunction with new bone formation. The next generation of Bone Substitute Materials (Beta-bsmTM and Gamma-bsm TM) are formulated based on the Alpha-bsm® chemistry but differ in powder processing (e.g. milling) technique. These materials are also self-setting, injectable and/or moldable apatitic calcium phosphate cements with improved handling and mechanical properties. The setting & hardening reaction of these new CPCs proceeds isothermically in less than 5 minutes at 37°C and once hardened demonstrate a compressive strength of 30 to 50 MPa. The final product (after full conversion) is a low crystalline (40% compared with Hydroxyapatite), calcium deficient (Ca/P atomic ratio = 1.45) carbonated apatite similar to the composition and structure of natural bone mineral (crystal size: length = 26 nm, width thickness = 8 nm). A desirable feature of these cements is their high surface chemistry (with specific surface area of about 180-200 m2/g) which is ideal for remodeling and controlled release of growth factors. A pilot rabbit critically sized femoral defect study comparing the three synthetic family products demonstrate that they share similar remodeling and resorption characteristics up to 52 weeks. Physico-chemical and mechanical performance of these next generation CPCs are favorable when compared with existing CPCs in the market, specifically material working time (at room temperature), cohesivity in a wet environment and fast setting & hardening rate (at body temperature).
