Paper Title:
A Study on Fretting Fatigue Behavior of Degraded 1Cr-0.5Mo Steel

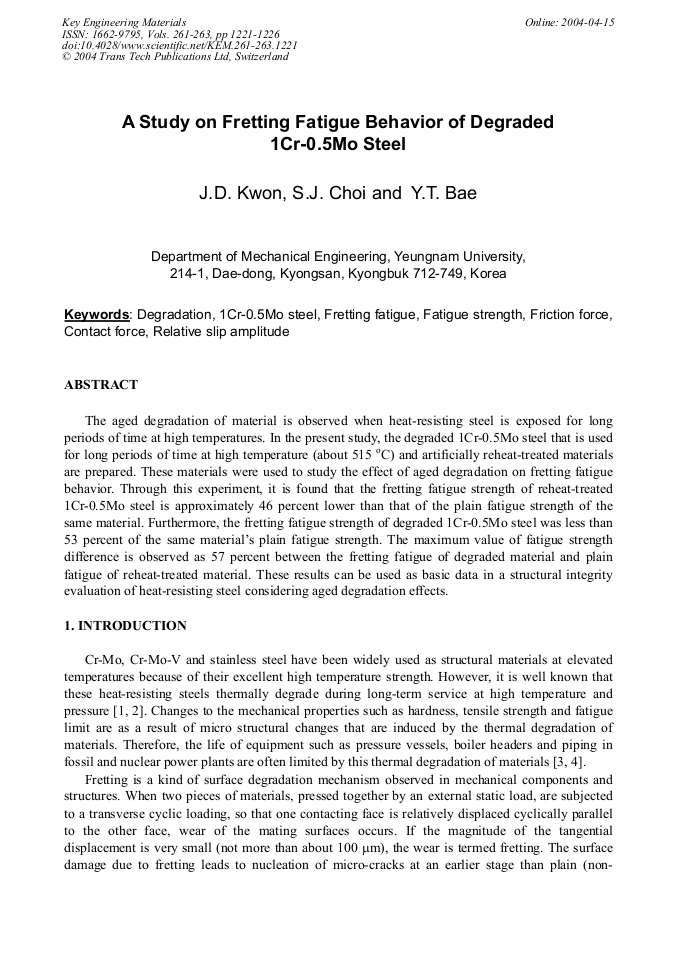

  Abstract

The aged degradation of material is observed when heat-resisting steel is exposed for long periods of time at high temperatures. In the present study, the degraded 1Cr-0.5Mo steel that is used for long periods of time at high temperature(about 515°C) and artificially reheat-treated materials are prepared. These materials were used to study the effect of aged degradation on fretting fatigue behavior. Through this experiment, it is found that the fretting fatigue strength of reheat-treated 1Cr-0.5Mo steel is approximately 46 percent lower than that of the plain fatigue strength of the same material. Furthermore, the fretting fatigue strength of degraded 1Cr-0.5Mo steel was less than 53 percent of the same material™s plain fatigue strength. The maximum value of fatigue strength difference is observed as 57 percent between the fretting fatigue of degraded material and plain fatigue of reheat-treated material. These results can be used as basic data in a structural integrity evaluation of heat-resisting steel considering aged degradation effects.

  Info
Periodical
Key Engineering Materials (Volumes 261-263)
Edited by
Kikuo Kishimoto, Masanori Kikuchi, Tetsuo Shoji and Masumi Saka
Pages
1221-1226
DOI
10.4028/www.scientific.net/KEM.261-263.1221
Citation
J. D. Kwon, S. J. Cho, Y. T. Bae, "A Study on Fretting Fatigue Behavior of Degraded 1Cr-0.5Mo Steel", Key Engineering Materials, Vols. 261-263, pp. 1221-1226, 2004
Online since
April 2004
Export
Price
$32.00
Share

In order to see related information, you need to Login.

In order to see related information, you need to Login.

Authors: Jeong Pyo Kim, Bong Kook Bae, Chang Sung Seok
Abstract:It's required that mechanical properties of in-service facilities maintain the safety of operation in power plants as well as chemical...
1349
Authors: Jae Do Kwon, Seung Wan Woo, Y.H. Choi
Abstract: In a primary reactor cooling system(RCS), a dissimilar weld zone exists between austenitic-ferritic duplex cast stainless steel(CF8M) in a...
1689
Authors: Jae Do Kwon, Seung Wan Woo, Young Hwan Choi
Abstract:A dissimilar weld zone exists between the pipe and nozzle in a primary reactor cooling system (RCS). Thermal aging is observed in cast...
1691
Authors: Un Bong Baek, Jong Seo Park, Seung Hoon Nahm, Hyuck Mo Lee
Abstract:In spite of frequent defect in industrial boilers, life assessment or diagnostic method for them has not been studied. In this research,...
532
Authors: Eduardo Luis Gaertner, José Divo Bressan, Anne Karollyne Petry
Chapter 4: Friction and Wear in Material Processing
Abstract:The fretting is responsible for many failures of components in the industry. It is present in assemblies like rivet and screw fixture,...
504
