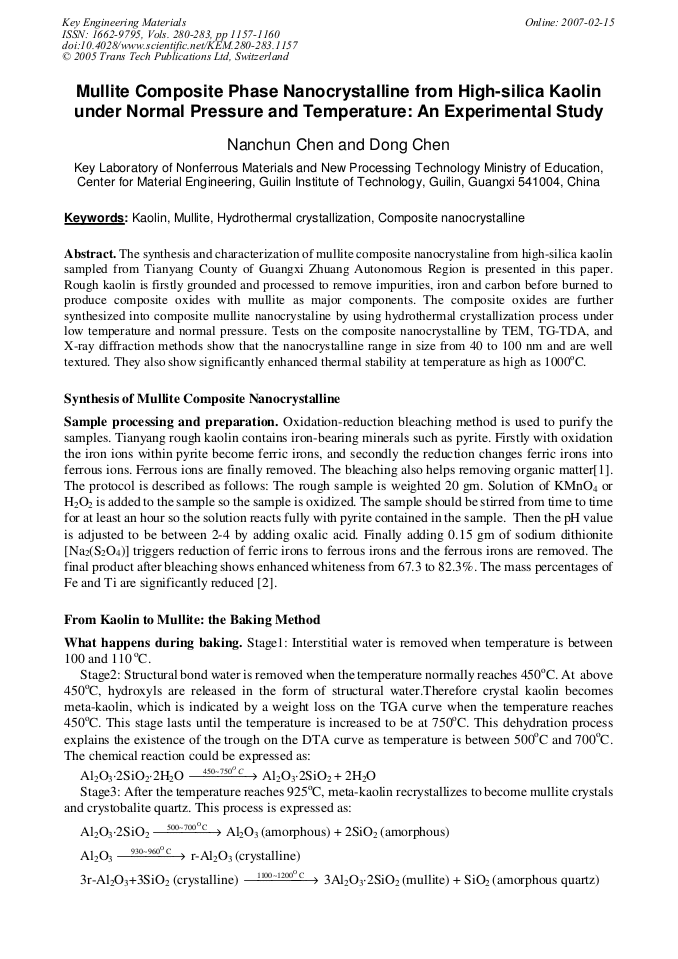

Paper Title:
Mullite Composite Phase Nanocrystalline from High-Silica Kaolin under Normal Pressure and Temperature: An Experimental Study
  Abstract

The synthesis and characterization of mullite composite nanocrystaline from high-silica kaolin sampled from Tianyang County of Guangxi Zhuang Autonomous Region is presented in this paper. Rough kaolin is firstly grounded and processed to remove impurities, iron and carbon before burned to produce composite oxides with mullite as major components. The composite oxides are further synthesized into composite mullite nanocrystaline by using hydrothermal crystallization process under low temperature and normal pressure. Tests on the composite nanocrystalline by TEM, TG-TDA, and X-ray diffraction methods show that the nanocrystalline range in size from 40 to 100 nm and are well textured. They also show significantly enhanced thermal stability at temperature as high as 1000oC.

  Info
Periodical
Key Engineering Materials (Volumes 280-283)
Edited by
Wei Pan, Jianghong Gong, Chang-Chun Ge and Jing-Feng Li
Pages
1157-1160
DOI
10.4028/www.scientific.net/KEM.280-283.1157
Citation
N. C. Chen, D. Chen, "Mullite Composite Phase Nanocrystalline from High-Silica Kaolin under Normal Pressure and Temperature: An Experimental Study", Key Engineering Materials, Vols. 280-283, pp. 1157-1160, 2005
Online since
February 2007
Export
Price
$32.00
Share

In order to see related information, you need to Login.

In order to see related information, you need to Login.

Authors: K. Konopka, M. Trzaska, Dariusz Oleszak, W. Zieliński, Krzysztof J. Kurzydłowski
249
Authors: Fei Peng, Kai Ming Liang, Hua Shao, An Min Hu, Feng Zhou
Abstract:The nucleation and crystallization kinetics of glass obtained by melting coal fly ash with additives at 1550°C have been investigated. The...
1651
Authors: Nan Chun Chen, Dong Chen
Abstract:Natural and raw high-silica kaolins are firstly processed into fine kaolin powders with oxidation-reduction bleaching method before mixed...
2264
Authors: Shu Bin Shen, Jing Long Bu, Li Xue Yu, Zhi Fa Wang, Rong Lin Wang, Rui Sheng Wang
Surface Engineering/Coatings
Abstract:Fused quartz granules (d50=19 μm) were used as raw material, and B4C-Yb2O3 (1:1, in mass) was...
24
Authors: Narumon Lertcumfu, Sukum Eitssayeam, Kamonpan Pengpat, Tawee Tunkasiri, Denis Russell Sweatman, Pharatree Jaita, Ratabongkot Sanjoom, Gobwute Rujijanagul
Chapter 3: Ceramics and Glass
Abstract:In the present study, mullite powders were prepared from fired Ranong kaolin powder at high temperatures. Differential thermal analyses and...
92
