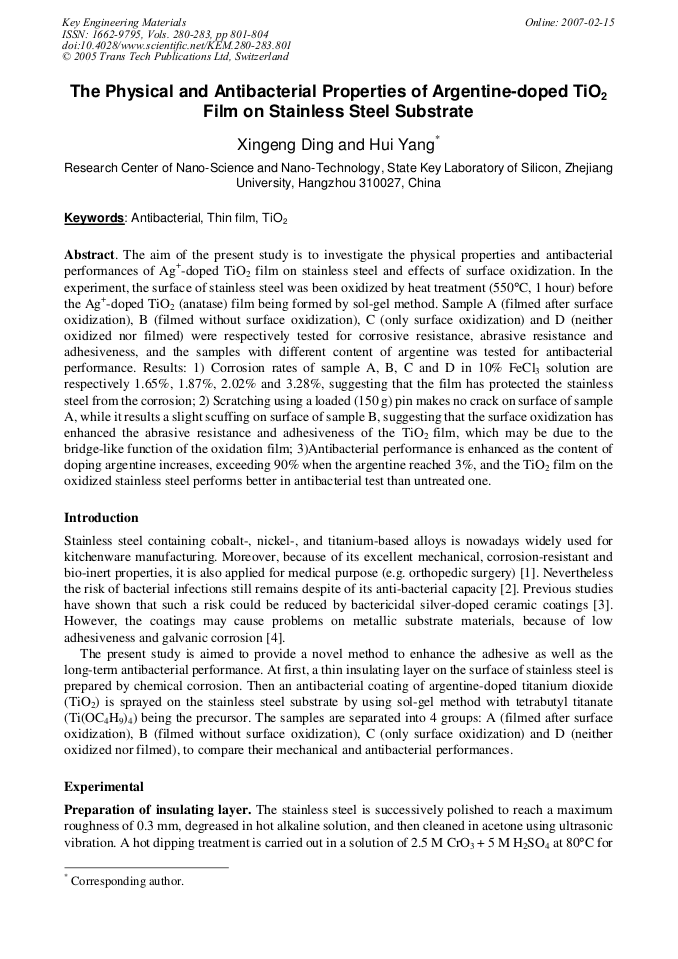

Paper Title:
The Physical and Antibacterial Properties of Argentine-Doped TiO2 Film on Stainless Steel Substrate
  Abstract

The aim of the present study is to investigate the physical properties and antibacterial performances of Ag+-doped TiO2 film on stainless steel and effects of surface oxidization. In the experiment, the surface of stainless steel was been oxidized by heat treatment (550°C, 1 hour) before the Ag+-doped TiO2 (anatase) film being formed by sol-gel method. Sample A (filmed after surface oxidization), B (filmed without surface oxidization), C (only surface oxidization) and D (neither oxidized nor filmed) were respectively tested for corrosive resistance, abrasive resistance and adhesiveness, and the samples with different content of argentine was tested for antibacterial performance. Results: 1) Corrosion rates of sample A, B, C and D in 10% FeCl3 solution are respectively 1.65%, 1.87%, 2.02% and 3.28%, suggesting that the film has protected the stainless steel from the corrosion; 2) Scratching using a loaded (150 g) pin makes no crack on surface of sample A, while it results a slight scuffing on surface of sample B, suggesting that the surface oxidization has enhanced the abrasive resistance and adhesiveness of the TiO2 film, which may be due to the bridge-like function of the oxidation film; 3)Antibacterial performance is enhanced as the content of doping argentine increases, exceeding 90% when the argentine reached 3%, and the TiO2 film on the oxidized stainless steel performs better in antibacterial test than untreated one.

  Info
Periodical
Key Engineering Materials (Volumes 280-283)
Edited by
Wei Pan, Jianghong Gong, Chang-Chun Ge and Jing-Feng Li
Pages
801-804
DOI
10.4028/www.scientific.net/KEM.280-283.801
Citation
X. G. Ding, L. Li, "The Physical and Antibacterial Properties of Argentine-Doped TiO2 Film on Stainless Steel Substrate", Key Engineering Materials, Vols. 280-283, pp. 801-804, 2005
Online since
February 2007
Authors
Export
Price
$32.00
Share

In order to see related information, you need to Login.

In order to see related information, you need to Login.

Authors: Xun Hong Wang, Kuaishe Wang
Abstract:Friction and wear behaviors have been studied between the untreated base material and the friction stir welds of 5052 aluminum alloy. To...
745
Authors: Yan Ping Liu, Fei Xing
Abstract:High quality TiN/Ti multi-layers have been successfully obtained on a carbon steel substrate by double glow plasma surface alloying...
1712
Authors: Chun Yang Ma, Chun Hua Ma, Zhan Fa Yang
Chapter 03: Metallic Materials
Abstract:Ni-TiN; Composite coating; Ultrasonic-magnetic-electrodeposition Abstract: In this paper, Ni-TiN composite coatings were prepared by...
246
Authors: Linda Diblíková, Alena Koukalová, Jan Kudláček, Michal Zoubek, František Herrmann
Chapter 1: Corrosion and Surface Engineering, Corrosion Protection
Abstract:Properties of commercially available epoxy coating were modified using multi-walled carbon nanoparticles (MWCNT) to obtain functional coating...
127
