Paper Title:

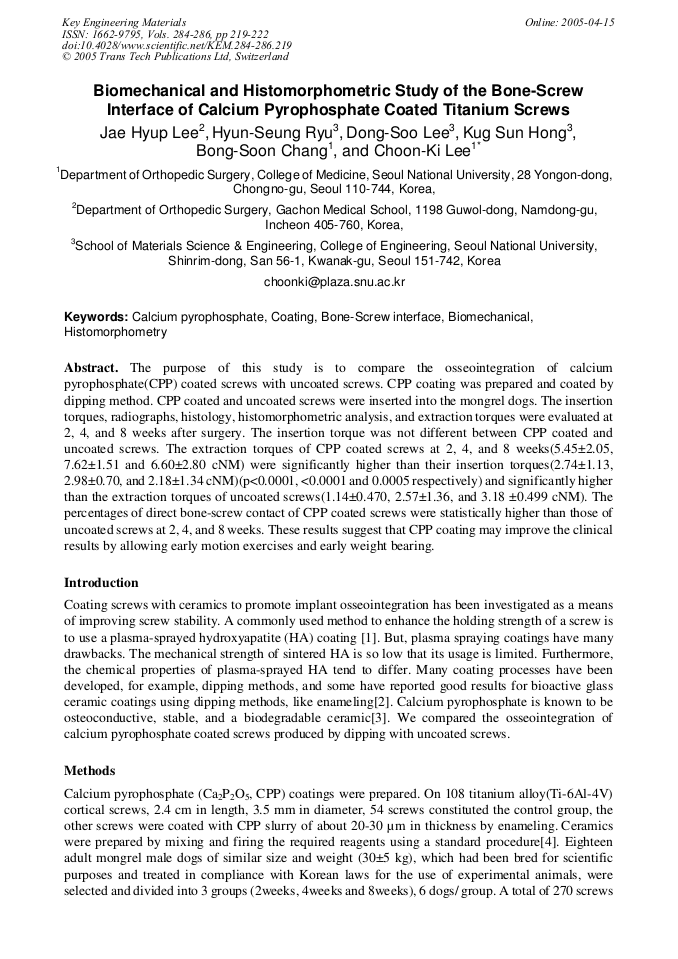

Biomechanical and Histomorphometric Study of the Bone-Screw Interface of Calcium Pyrophosphate Coated Titanium Screws
  Abstract

The purpose of this study is to compare the osseointegration of calcium pyrophosphate(CPP) coated screws with uncoated screws. CPP coating was prepared and coated by dipping method. CPP coated and uncoated screws were inserted into the mongrel dogs. The insertion torques, radiographs, histology, histomorphometric analysis, and extraction torques were evaluated at 2, 4, and 8 weeks after surgery. The insertion torque was not different between CPP coated and uncoated screws. The extraction torques of CPP coated screws at 2, 4, and 8 weeks(5.45±2.05, 7.62±1.51 and 6.60±2.80 cNM) were significantly higher than their insertion torques(2.74±1.13, 2.98±0.70, and 2.18±1.34 cNM)(p<0.0001, <0.0001 and 0.0005 respectively) and significantly higher than the extraction torques of uncoated screws(1.14±0.470, 2.57±1.36, and 3.18 ±0.499 cNM). The percentages of direct bone-screw contact of CPP coated screws were statistically higher than those of uncoated screws at 2, 4, and 8 weeks. These results suggest that CPP coating may improve the clinical results by allowing early motion exercises and early weight bearing.

  Info
Periodical
Key Engineering Materials (Volumes 284-286)
Main Theme
Edited by
Panjian Li, Kai Zhang and Clifford W. Colwell, Jr.
Pages
219-222
DOI
10.4028/www.scientific.net/KEM.284-286.219
Citation
J. H. Lee, H. S. Ryu, D. S. Lee, K. S. Hong, B.-S. Chang, C. K. Lee, "Biomechanical and Histomorphometric Study of the Bone-Screw Interface of Calcium Pyrophosphate Coated Titanium Screws ", Key Engineering Materials, Vols. 284-286, pp. 219-222, 2005
Online since
April 2005
Export
Price
$32.00
Share

In order to see related information, you need to Login.

In order to see related information, you need to Login.

Authors: Shunsuke Fujibayashi, Hyun Min Kim, Masashi Neo, Masaki Uchida, Tadashi Kokubo, Takashi Nakamura
887
Authors: Anke Bernstein, Renate Gildenhaar, Doreen Nöbel, Georg Berger
623
Authors: Mitsuru Takemoto, Shunsuke Fujibayashi, Masashi Neo, Kazutaka So, Norihiro Akiyama, Tomiharu Matsushita, Tadashi Kokubo, Takashi Nakamura
Abstract:We have developed a porous titanium implant sintered with spacer particles (porosity = 50 %, average pore size ± standard deviation = 303 ±...
987
Authors: Ana Cristina P. Machado, Marize Varella de Oliveira, Robson Pacheco Pereira, Yasmin R. Carvalho, Carlos Alberto Alves Cairo
Abstract:The osseointegration of porous titanium implants was evaluated in the present work. Implants were fabricated from ASTM grade 2 titanium by a...
179
Authors: Abdelilah Benmarouane, Helene Citterio-Bigot, Pierre Millet, Thomas Buslaps, Alain Lodini
Abstract:Technology developments of implant composition and manufacture have been used in the medical field. Several different implants have been...
185
