Paper Title:

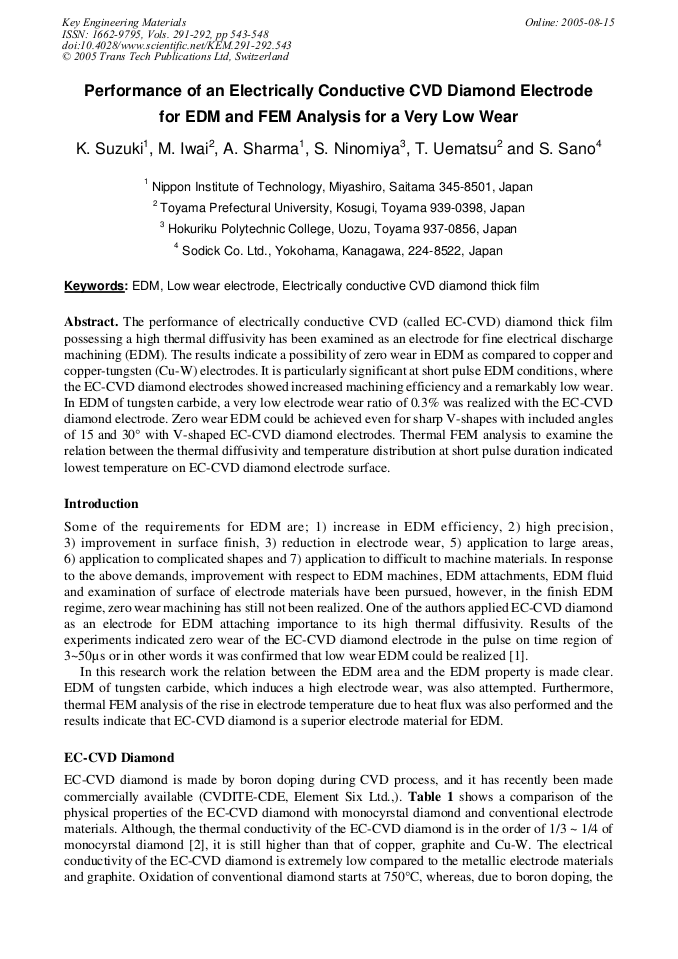

Performance of an Electrically Conductive CVD Diamond Electrode for EDM and FEM Analysis for a Very Low Wear
  Abstract

The performance of electrically conductive CVD (called EC-CVD) diamond thick film possessing a high thermal diffusivity has been examined as an electrode for fine electrical discharge machining (EDM). The results indicate a possibility of zero wear in EDM as compared to copper and copper-tungsten (Cu-W) electrodes. It is particularly significant at short pulse EDM conditions, where the EC-CVD diamond electrodes showed increased machining efficiency and a remarkably low wear. In EDM of tungsten carbide, a very low electrode wear ratio of 0.3% was realized with the EC-CVD diamond electrode. Zero wear EDM could be achieved even for sharp V-shapes with included angles of 15 and 30° with V-shaped EC-CVD diamond electrodes. Thermal FEM analysis to examine the relation between the thermal diffusivity and temperature distribution at short pulse duration indicated lowest temperature on EC-CVD diamond electrode surface.

  Info
Periodical
Key Engineering Materials (Volumes 291-292)
Edited by
Yury M. Baron, Jun'ichi Tamaki and Tsunemoto Kuriyagawa
Pages
543-548
DOI
10.4028/www.scientific.net/KEM.291-292.543
Citation
K. Suzuki, M. Iwai, A. Sharma, S. Ninomiya, T. Uematsu, S. Sano, "Performance of an Electrically Conductive CVD Diamond Electrode for EDM and FEM Analysis for a Very Low Wear", Key Engineering Materials, Vols. 291-292, pp. 543-548, 2005
Online since
August 2005
