Paper Title:
Microstructure and Mechanical Properties of A 1.4%C Ultra High Carbon Steel
  Abstract

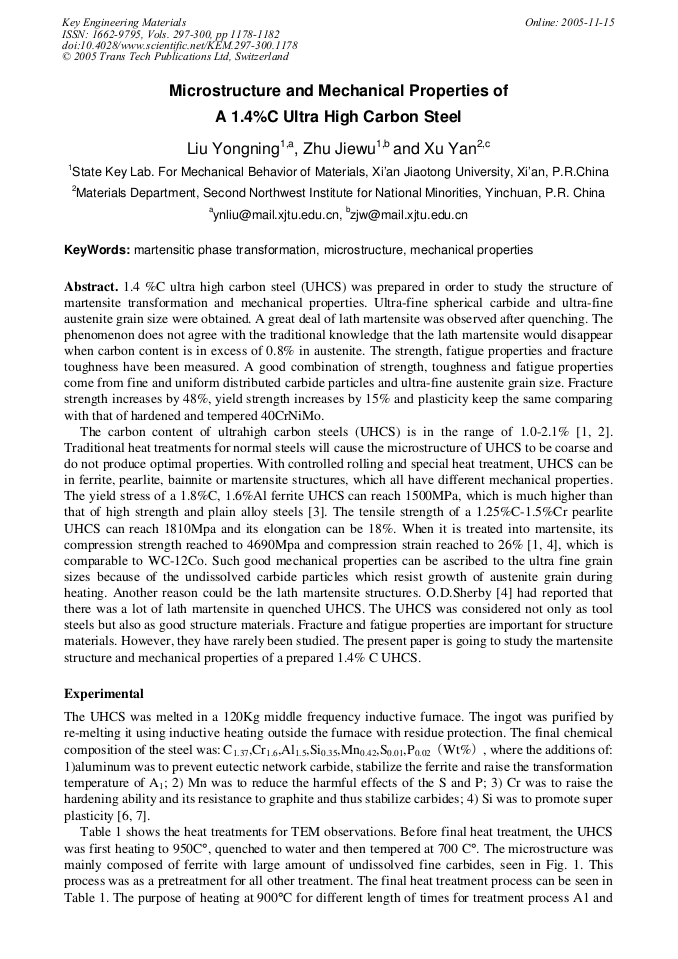

1.4 %C ultra high carbon steel (UHCS) was prepared in order to study the structure of martensite transformation and mechanical properties. Ultra-fine spherical carbide and ultra-fine austenite grain size were obtained. A great deal of lath martensite was observed after quenching. The phenomenon does not agree with the traditional knowledge that the lath martensite would disappear when carbon content is in excess of 0.8% in austenite. The strength, fatigue properties and fracture toughness have been measured. A good combination of strength, toughness and fatigue properties come from fine and uniform distributed carbide particles and ultra-fine austenite grain size. Fracture strength increases by 48%, yield strength increases by 15% and plasticity keep the same comparing with that of hardened and tempered 40CrNiMo. The carbon content of ultrahigh carbon steels (UHCS) is in the range of 1.0-2.1% [1, 2]. Traditional heat treatments for normal steels will cause the microstructure of UHCS to be coarse and do not produce optimal properties. With controlled rolling and special heat treatment, UHCS can be in ferrite, pearlite, bainnite or martensite structures, which all have different mechanical properties. The yield stress of a 1.8%C, 1.6%Al ferrite UHCS can reach 1500MPa, which is much higher than that of high strength and plain alloy steels [3]. The tensile strength of a 1.25%C-1.5%Cr pearlite UHCS can reach 1810Mpa and its elongation can be 18%. When it is treated into martensite, its compression strength reached to 4690Mpa and compression strain reached to 26% [1, 4], which is comparable to WC-12Co. Such good mechanical properties can be ascribed to the ultra fine grain sizes because of the undissolved carbide particles which resist growth of austenite grain during heating. Another reason could be the lath martensite structures. O.D.Sherby [4] had reported that there was a lot of lath martensite in quenched UHCS. The UHCS was considered not only as tool steels but also as good structure materials. Fracture and fatigue properties are important for structure materials. However, they have rarely been studied. The present paper is going to study the martensite structure and mechanical properties of a prepared 1.4% C UHCS.

  Info
Periodical
Key Engineering Materials (Volumes 297-300)
Edited by
Young-Jin Kim, Dong-Ho Bae and Yun-Jae Kim
Pages
1178-1182
DOI
10.4028/www.scientific.net/KEM.297-300.1178
Citation
Y. N. Liu, J. W. Zhu, Y. Xu, "Microstructure and Mechanical Properties of A 1.4%C Ultra High Carbon Steel ", Key Engineering Materials, Vols. 297-300, pp. 1178-1182, 2005
Online since
November 2005
Export
Price
$32.00
Share

In order to see related information, you need to Login.

In order to see related information, you need to Login.

Authors: Jie Shi, Wen Quan Cao, Han Dong
Abstract:In this study a C-Mn High Strength Low Alloy steel (HSLAs) was processed by quenching and austenite reverted transformation during annealing...
238
Authors: Guo Bin Li, Zheng Zhi Zhao, Di Tang
Abstract:The microstructure evolution of 780 MPa hot dip galvanized dual-phase (DP) steel at heating stages of the annealing process was analyzed...
1331
Authors: Li Hui Wang, Di Tang, Hai Tao Jiang, Ji Bin Liu, Yu Chen
Chapter 3: Steel and Iron Technology
Abstract:Effects of continuous annealing process on microstructure and properties of Si based cold-rolled TRIP Steel were studied. The results show...
472
Authors: Zhuang Li, Di Wu, Wei Lv, Shao Pu Kang, Zhen Zheng
Chapter 1: Materials Engineering. Technologies and Processing
Abstract:In this paper, ultra-high strength dual phase steel was investigated. Thermomechanical processing was conducted by using a laboratory hot...
666
Authors: Xiao Hai Zhang, Wen Bo Xu, Jia Wei Gu, Shi Hang Jiang
Chapter 9: Metals and Alloys in Industrial Applications
Abstract:Using optical microscopy、impact and tensile test,Study the effects of different quenching and tempering temperature on the microstructure and...
978
