Paper Title:

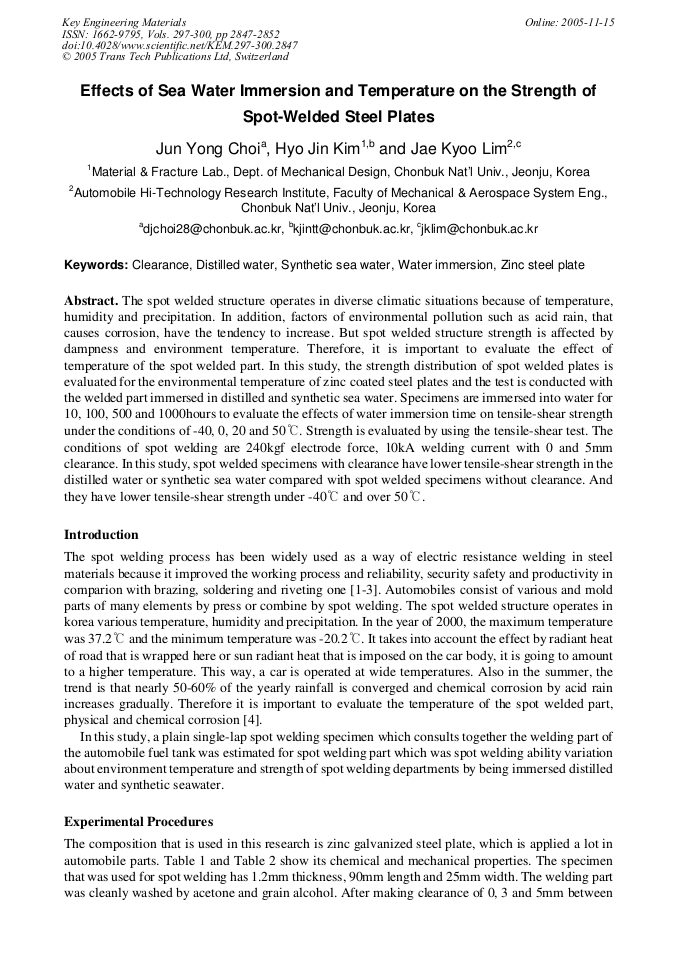

Effects of Sea Water Immersion and Temperature on the Strength of Spot-Welded Steel Plates
  Abstract

The spot welded structure operates in diverse climatic situations because of temperature, humidity and precipitation. In addition, factors of environmental pollution such as acid rain, that causes corrosion, have the tendency to increase. But spot welded structure strength is affected by dampness and environment temperature. Therefore, it is important to evaluate the effect of temperature of the spot welded part. In this study, the strength distribution of spot welded plates is evaluated for the environmental temperature of zinc coated steel plates and the test is conducted with the welded part immersed in distilled and synthetic sea water. Specimens are immersed into water for 10, 100, 500 and 1000hours to evaluate the effects of water immersion time on tensile-shear strength under the conditions of -40, 0, 20 and 50°C. Strength is evaluated by using the tensile-shear test. The conditions of spot welding are 240kgf electrode force, 10kA welding current with 0 and 5mm clearance. In this study, spot welded specimens with clearance have lower tensile-shear strength in the distilled water or synthetic sea water compared with spot welded specimens without clearance. And they have lower tensile-shear strength under -40°C and over 50°C.

  Info
Periodical
Key Engineering Materials (Volumes 297-300)
Edited by
Young-Jin Kim, Dong-Ho Bae and Yun-Jae Kim
Pages
2847-2852
DOI
10.4028/www.scientific.net/KEM.297-300.2847
Citation
J. Y. Choi, H. J. Kim, J. K. Lim, "Effects of Sea Water Immersion and Temperature on the Strength of Spot-Welded Steel Plates ", Key Engineering Materials, Vols. 297-300, pp. 2847-2852, 2005
Online since
November 2005
Export
Price
$32.00
Share

In order to see related information, you need to Login.

In order to see related information, you need to Login.

Authors: Kazuyoshi Saida, Woo Hyun Song, Kazutoshi Nishimoto, Makoto Shirai
Abstract:The diode laser brazing of heat-resistant alloys with precious filler metals has been conducted using tandem beam which consisted of...
493
Authors: Xiao Zhen Hua, Wen Ting Guo, Yong Tao Xu, Zhi Guo Ye, Ai Hua Zou, Xian Liang Zhou
Chapter 5: Joining Processes and Equipment
Abstract:The 1Cr18Ni9Ti stainless steel was brazed in the argon shield and впр7 as the filler metal. The spreadability and clearance fillability of...
1879
Authors: J.H. Li, Zhong Mei Zhang
II. Material Forming Science and Technology
Abstract:The plastic analysis software DEFORM was used to simulate the blanking process of metal plastic without burr. Based on theory of the rigid...
377
Authors: Zhuo Jun Chen, Chang Jin Yang, Xiao Long Gu, Cheng Dong Wu, Long Long Feng
Chapter 3: Materials Forming, Machining and Joining
Abstract:Vacuum brazing of 316L stainless steel with BNi-2 brazing filler metal.The effects of brazing temperature and brazing clearance on...
1242
Authors: Shu Tian Fan, Yong Wu
Chapter 2: Materials and Mechanics Study in Manufacturing Engineering
Abstract:A blanking method which can punch the sheet metal without burr is presented, this method is divided into two stages: preloading deformation...
276
