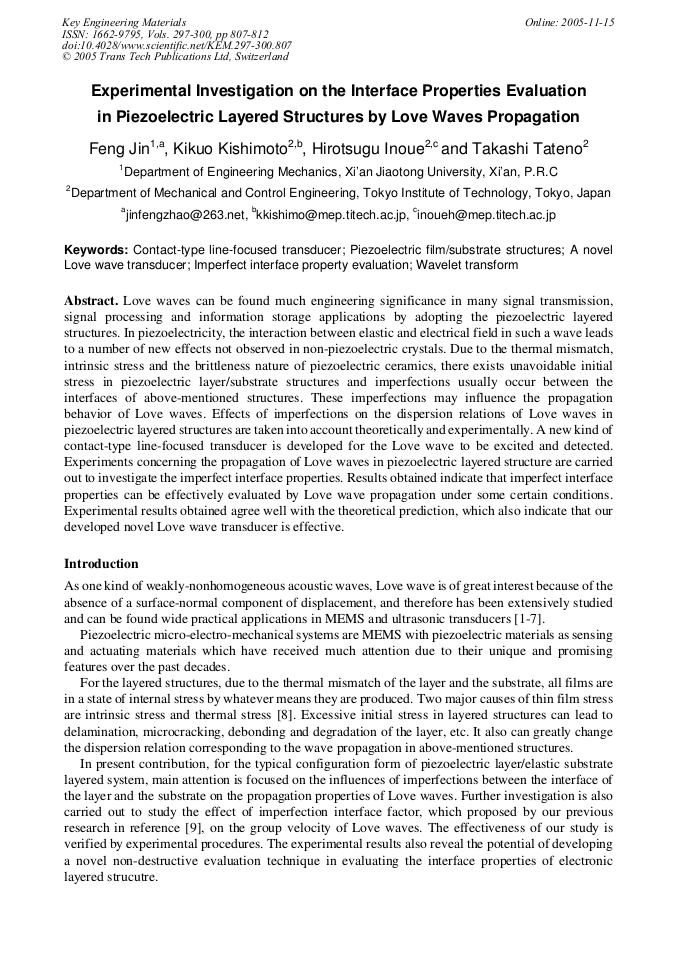

Paper Title:
Experimental Investigation on the Interface Properties Evaluation in Piezoelectric Layered Structures by Love Waves Propagation
  Abstract

The linear ultrasonic technique has been extensively used as a powerful, non-destructive test tool for reliability testing and failure analysis of electronic packaging. This is used most often in the inspection of defects such as delaminations, voids, or cracks through use of a SAM (Scanning Acoustic Microscope). Then, as the reliability level that is required of electronic packaging becomes higher and the thickness of package becomes thinner, the possible defect which needs to be detected becomes smaller. In the conventional SAM, however it is very difficult to detect small defects less than m µ 1 . 0 , such as micro-delaminations. In order to solve such a problem, this paper proposes a nonlinear ultrasonic method, where the nonlinearity caused by the effect of crack-face interactions is considered. The basic concept of this method involves harmonic frequencies that are generated in the transmitted ultrasonic wave due to the partial contact at the interface of micro-delamination. As an evaluation index, the nonlinear parameter dependent on the amplitude of the second order harmonic frequency component is obtained by spectral analysis of the transmitted signal. Experimental results show that the nonlinear parameter has good correlation with the micro-gap and the proposed method can detect the micro-delamination even less than nm 1 .

  Info
Periodical
Key Engineering Materials (Volumes 297-300)
Edited by
Young-Jin Kim, Dong-Ho Bae and Yun-Jae Kim
Pages
807-812
DOI
10.4028/www.scientific.net/KEM.297-300.807
Citation
F. Jin, K. Kishimoto, H. Inoue, T. Tateno, "Experimental Investigation on the Interface Properties Evaluation in Piezoelectric Layered Structures by Love Waves Propagation ", Key Engineering Materials, Vols. 297-300, pp. 807-812, 2005
Online since
November 2005
