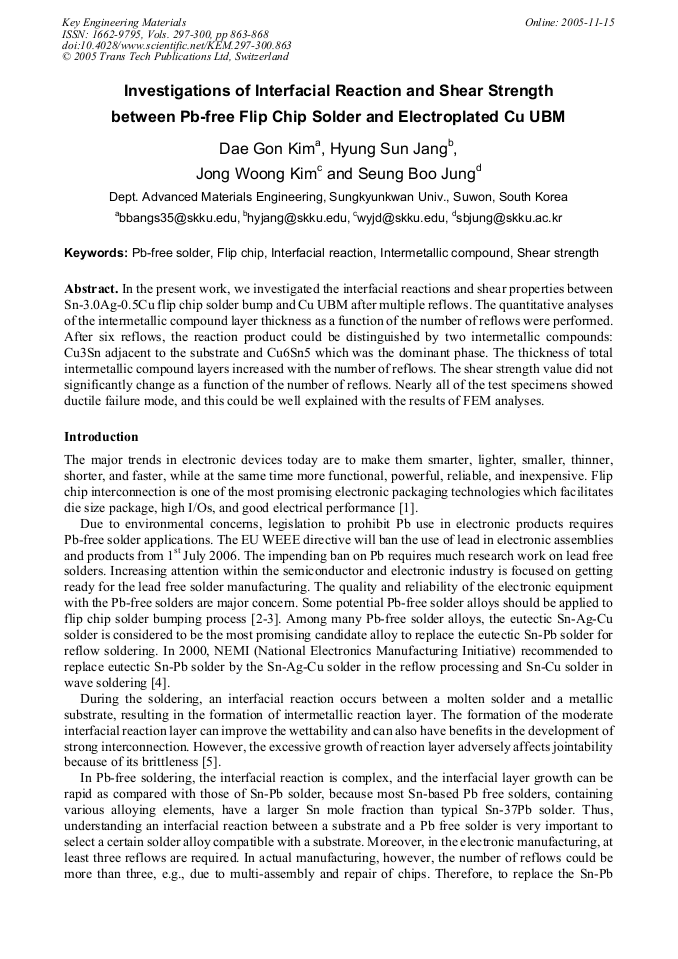

In the present work, we investigated the interfacial reactions and shear properties between Sn-3.0Ag-0.5Cu flip chip solder bump and Cu UBM after multiple reflows. The quantitative analyses of the intermetallic compound layer thickness as a function of the number of reflows were performed. After six reflows, the reaction product could be distinguished by two intermetallic compounds: Cu3Sn adjacent to the substrate and Cu6Sn5 which was the dominant phase. The thickness of total intermetallic compound layers increased with the number of reflows. The shear strength value did not significantly change as a function of the number of reflows. Nearly all of the test specimens showed ductile failure mode, and this could be well explained with the results of FEM analyses.
