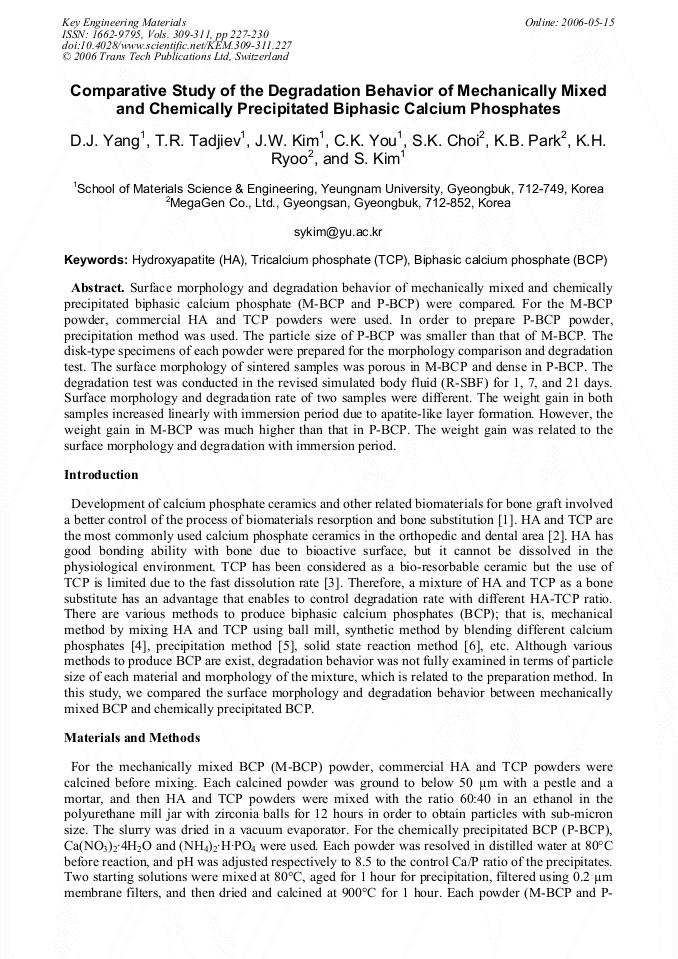

Paper Title:
Comparative Study of the Degradation Behavior of Mechanically Mixed and Chemically Precipitated Biphasic Calcium Phosphates
  Abstract

Surface morphology and degradation behavior of mechanically mixed and chemically precipitated biphasic calcium phosphate (M-BCP and P-BCP) were compared. For the M-BCP powder, commercial HA and TCP powders were used. In order to prepare P-BCP powder, precipitation method was used. The particle size of P-BCP was smaller than that of M-BCP. The disk-type specimens of each powder were prepared for the morphology comparison and degradation test. The surface morphology of sintered samples was porous in M-BCP and dense in P-BCP. The degradation test was conducted in the revised simulated body fluid (R-SBF) for 1, 7, and 21 days. Surface morphology and degradation rate of two samples were different. The weight gain in both samples increased linearly with immersion period due to apatite-like layer formation. However, the weight gain in M-BCP was much higher than that in P-BCP. The weight gain was related to the surface morphology and degradation with immersion period.

  Info
Periodical
Key Engineering Materials (Volumes 309-311)
Main Theme
Edited by
Takashi Nakamura, Kimihiro Yamashita and Masashi Neo
Pages
227-230
DOI
10.4028/www.scientific.net/KEM.309-311.227
Citation
D.J. Yang, T. R. Tadjiev, J. W. Kim, C. K. You, S.K. Choi, K.B. Park, K.H. Ryoo, S. Y. Kim, "Comparative Study of the Degradation Behavior of Mechanically Mixed and Chemically Precipitated Biphasic Calcium Phosphates ", Key Engineering Materials, Vols. 309-311, pp. 227-230, 2006
Online since
May 2006
Export
Price
$32.00
Share

In order to see related information, you need to Login.

In order to see related information, you need to Login.

Authors: You Rong Duan, Z.R. Zhang, Chao Yuan Wang, Ji Yong Chen, Xing Dong Zhang
131
Authors: You Rong Duan, Cheng Yong Wang, Ji Yong Chen, Xing Dong Zhang
351
Authors: Si Yu Ni, Jiang Chang, Kai Li Lin, Wan Yin Zhai
Abstract:In this study, CaSiO3 (CS)/Ca3(PO4)2 (TCP) composites with 50% CS and 50% TCP sintered at different temperatures (1100oC, 1200oC and 1300oC)...
451
Authors: Gultekin Goller, Ipek Akin
Abstract:The aim of this study is to investigate the crystallization behavior and in-vitro bioactivity character of glass ceramics having 3:7 weight...
261
Authors: Xue Zhang, Zhi Meng Xiu, Xiao Wu Li
Abstract:(HAp/SiO2)/Ti biocomposites were prepared by the powder metallurgy method. The phase compositions and the in vitro bioactivity of such...
88
