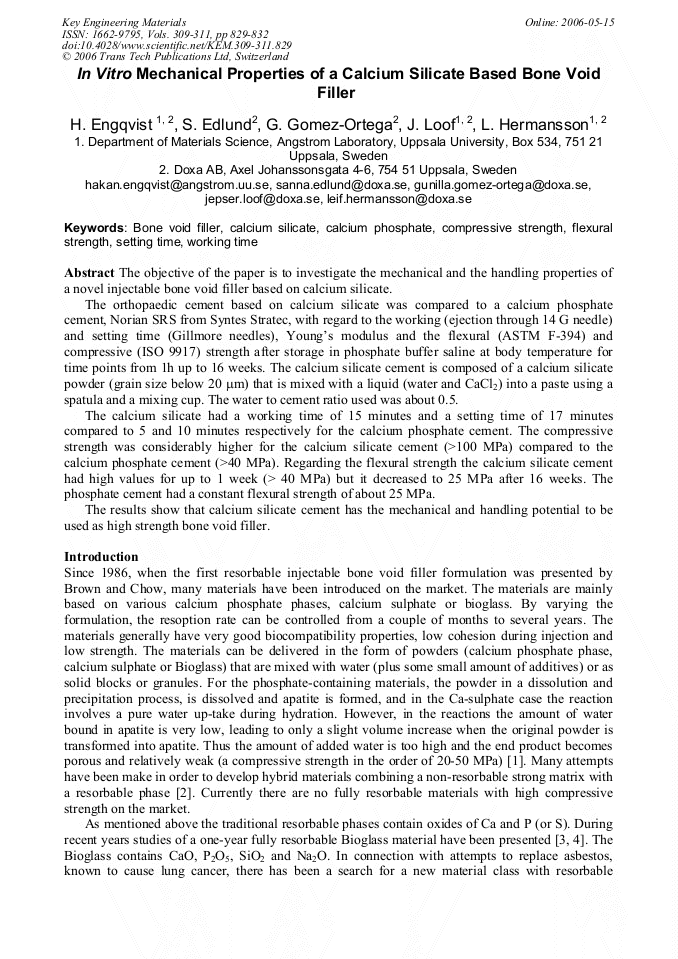

Paper Title:
In Vitro Mechanical Properties of a Calcium Silicate Based Bone Void Filler
  Abstract

The objective of the paper is to investigate the mechanical and the handling properties of a novel injectable bone void filler based on calcium silicate. The orthopaedic cement based on calcium silicate was compared to a calcium phosphate cement, Norian SRS from Syntes Stratec, with regard to the working (ejection through 14 G needle) and setting time (Gillmore needles), Young’s modulus and the flexural (ASTM F-394) and compressive (ISO 9917) strength after storage in phosphate buffer saline at body temperature for time points from 1h up to 16 weeks. The calcium silicate cement is composed of a calcium silicate powder (grain size below 20 µm) that is mixed with a liquid (water and CaCl2) into a paste using a spatula and a mixing cup. The water to cement ratio used was about 0.5. The calcium silicate had a working time of 15 minutes and a setting time of 17 minutes compared to 5 and 10 minutes respectively for the calcium phosphate cement. The compressive strength was considerably higher for the calcium silicate cement (>100 MPa) compared to the calcium phosphate cement (>40 MPa). Regarding the flexural strength the calcium silicate cement had high values for up to 1 week (> 40 MPa) but it decreased to 25 MPa after 16 weeks. The phosphate cement had a constant flexural strength of about 25 MPa. The results show that calcium silicate cement has the mechanical and handling potential to be used as high strength bone void filler.

  Info
Periodical
Key Engineering Materials (Volumes 309-311)
Main Theme
Edited by
Takashi Nakamura, Kimihiro Yamashita and Masashi Neo
Pages
829-832
DOI
10.4028/www.scientific.net/KEM.309-311.829
Citation
H. Engqvist, S. Edlund, G. Gómez-Ortega, J. Lööf, L. Hermansson, "In Vitro Mechanical Properties of a Calcium Silicate Based Bone Void Filler", Key Engineering Materials, Vols. 309-311, pp. 829-832, 2006
Online since
May 2006
Export
Price
$32.00
Share

In order to see related information, you need to Login.

In order to see related information, you need to Login.

Authors: Aliassghar Tofighi, R. Palazzolo
Abstract:ACP (amorphous calcium phosphate) and DCPD (dicalcium phosphate dihydrate, or Brushite) powders were high energy dry ball milled at a 1:1...
101
Authors: Liam M. Grover, Sarika Patel, Y. Hu, Uwe Gbureck, J.E. Barralet
Abstract:The hydrolysis of brushite in calcium phosphate cements to form hydroxyapatite is known to result in the long term stability of the material...
311
Authors: Xavier Bourges, Serge Baroth, Eric Goyenvalle, Ronan Cognet, Françoise Moreau, Paul Pilet, Eric Aguado, G. Daculsi
Abstract:We performed vertebroplasty on goat model by injecting a new macroporous calcium phosphate cement MCPC®. The mechanical property of the...
377
Authors: Xia Zhang, Cong Ke Wang, Rui Zhang, Chuan Wei Du, Guo Zhong Li
Chapter 2: Material Engineering and Processing Technologies
Abstract:In this article, the influence of the churning technology on the average diameter of xonotlite particle and the micro-structure of xonotlite...
158
Authors: Rui Zhang, Cong Ke Wang, Xia Zhang, Chuan Wei Du, Guo Zhong Li
Chapter 2: Material Engineering and Processing Technologies
Abstract:The hard silicon calcium stone slurry were synthesized by dynamic hydrothermal synthesis in this article, the influence of water solid ratio...
162
