Paper Title:

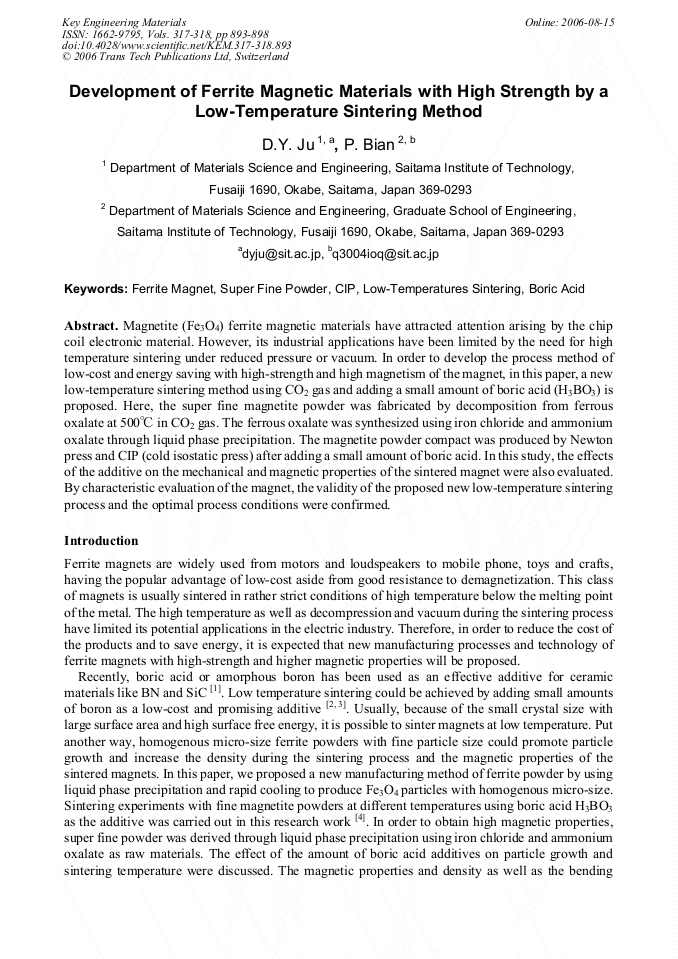

Development of Ferrite Magnetic Materials with High Strength by a Low-Temperature Sintering Method
  Abstract

Magnetite (Fe3O4) ferrite magnetic materials have attracted attention arising by the chip coil electronic material. However, its industrial applications have been limited by the need for high temperature sintering under reduced pressure or vacuum. In order to develop the process method of low-cost and energy saving with high-strength and high magnetism of the magnet, in this paper, a new low-temperature sintering method using CO2 gas and adding a small amount of boric acid (H3BO3) is proposed. Here, the super fine magnetite powder was fabricated by decomposition from ferrous oxalate at 500 in CO2 gas. The ferrous oxalate was synthesized using iron chloride and ammonium oxalate through liquid phase precipitation. The magnetite powder compact was produced by Newton press and CIP (cold isostatic press) after adding a small amount of boric acid. In this study, the effects of the additive on the mechanical and magnetic properties of the sintered magnet were also evaluated. By characteristic evaluation of the magnet, the validity of the proposed new low-temperature sintering process and the optimal process conditions were confirmed.

  Info
Periodical
Key Engineering Materials (Volumes 317-318)
Edited by
T. Ohji, T. Sekino and K. Niihara
Pages
893-898
DOI
10.4028/www.scientific.net/KEM.317-318.893
Citation
D. Y. Ju, P. Bian, "Development of Ferrite Magnetic Materials with High Strength by a Low-Temperature Sintering Method", Key Engineering Materials, Vols. 317-318, pp. 893-898, 2006
Online since
August 2006
