Paper Title:

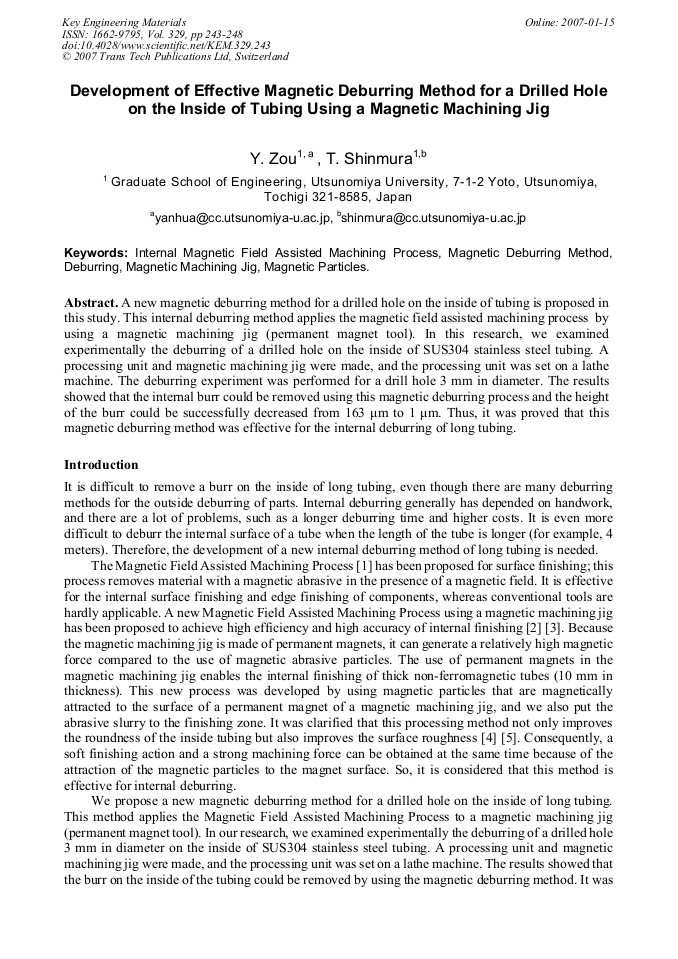

Development of Effective Magnetic Deburring Method for a Drilled Hole on the Inside of Tubing Using a Magnetic Machining Jig
  Abstract

A new magnetic deburring method for a drilled hole on the inside of tubing is proposed in this study. This internal deburring method applies the magnetic field assisted machining process by using a magnetic machining jig (permanent magnet tool). In this research, we examined experimentally the deburring of a drilled hole on the inside of SUS304 stainless steel tubing. A processing unit and magnetic machining jig were made, and the processing unit was set on a lathe machine. The deburring experiment was performed for a drill hole 3 mm in diameter. The results showed that the internal burr could be removed using this magnetic deburring process and the height of the burr could be successfully decreased from 163 μm to 1 μm. Thus, it was proved that this magnetic deburring method was effective for the internal deburring of long tubing.

  Info
Periodical
Edited by
Dongming Guo, Tsunemoto Kuriyagawa, Jun Wang and Jun’ichi Tamaki
Pages
243-248
DOI
10.4028/www.scientific.net/KEM.329.243
Citation
Y. H. Zou, T. Shinmura, "Development of Effective Magnetic Deburring Method for a Drilled Hole on the Inside of Tubing Using a Magnetic Machining Jig", Key Engineering Materials, Vol. 329, pp. 243-248, 2007
Online since
January 2007
