Paper Title:

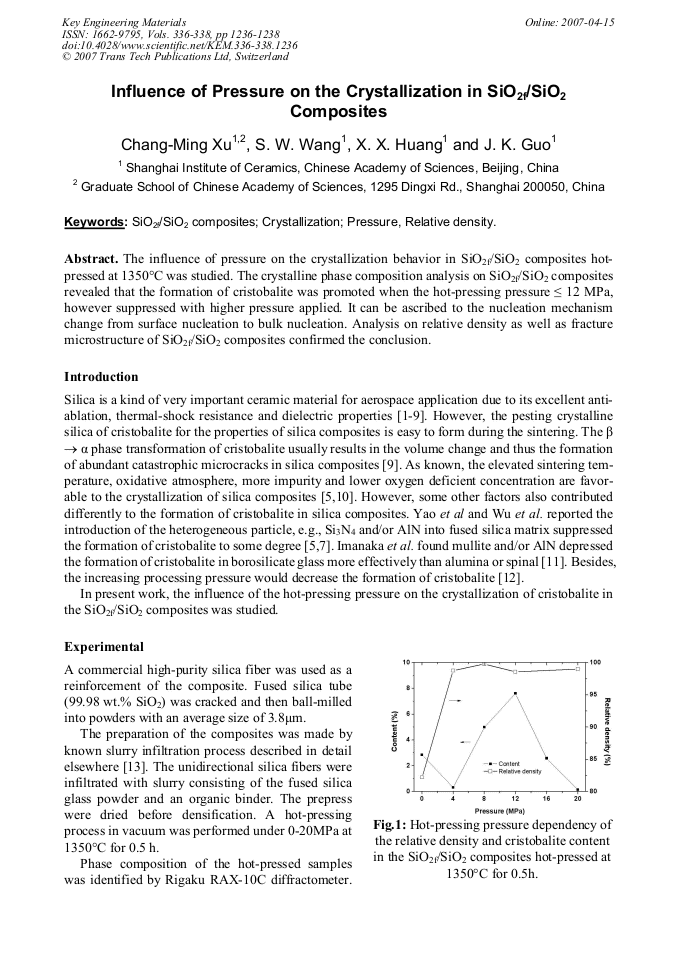

Influence of Pressure on the Crystallization in SiO2f/SiO2 Composites
  Abstract

The influence of pressure on the crystallization behavior in SiO2f/SiO2 composites hotpressed at 1350°C was studied. The crystalline phase composition analysis on SiO2f/SiO2 composites revealed that the formation of cristobalite was promoted when the hot-pressing pressure ≤ 12 MPa, however suppressed with higher pressure applied. It can be ascribed to the nucleation mechanism change from surface nucleation to bulk nucleation. Analysis on relative density as well as fracture microstructure of SiO2f/SiO2 composites confirmed the conclusion.

  Info
Periodical
Key Engineering Materials (Volumes 336-338)
Edited by
Wei Pan and Jianghong Gong
Pages
1236-1238
DOI
10.4028/www.scientific.net/KEM.336-338.1236
Citation
C. M. Xu, S. W. Wang, X. X. Huang, J. K. Guo, "Influence of Pressure on the Crystallization in SiO2f/SiO2 Composites", Key Engineering Materials, Vols. 336-338, pp. 1236-1238, 2007
Online since
April 2007
Export
Price
$32.00
Share

In order to see related information, you need to Login.

In order to see related information, you need to Login.

Authors: Jing Kun Guo, Hua Min Kou, Yu Bai Pan
Abstract:The main problems for multiphase materials are the even mixing and the bonding or reacting among two or more phases, as well as the states...
233
Authors: Tao Jiang, Hai Yun Jin, Zhi Hao Jin, Jian Feng Yang, Guan Jun Qiao
Abstract:The machinable B4C/BN ceramics composites were fabricated by hot-pressing sintering process at 1850oC for 1h under the pressure of 30MPa....
53
Authors: Ruo Fei Xiang, Yuan Bing Li, Shu Jing Li, Xin Yan Ma, Ya Wei Li, Shao Bai Sang
Chapter 3: Ceramics for Structural Applications
Abstract:In this work, chamotte with dispersions of up to 30wt% zircon is sintered at 1500 °C to investigate the effect of zircon content on the...
604
