Paper Title:

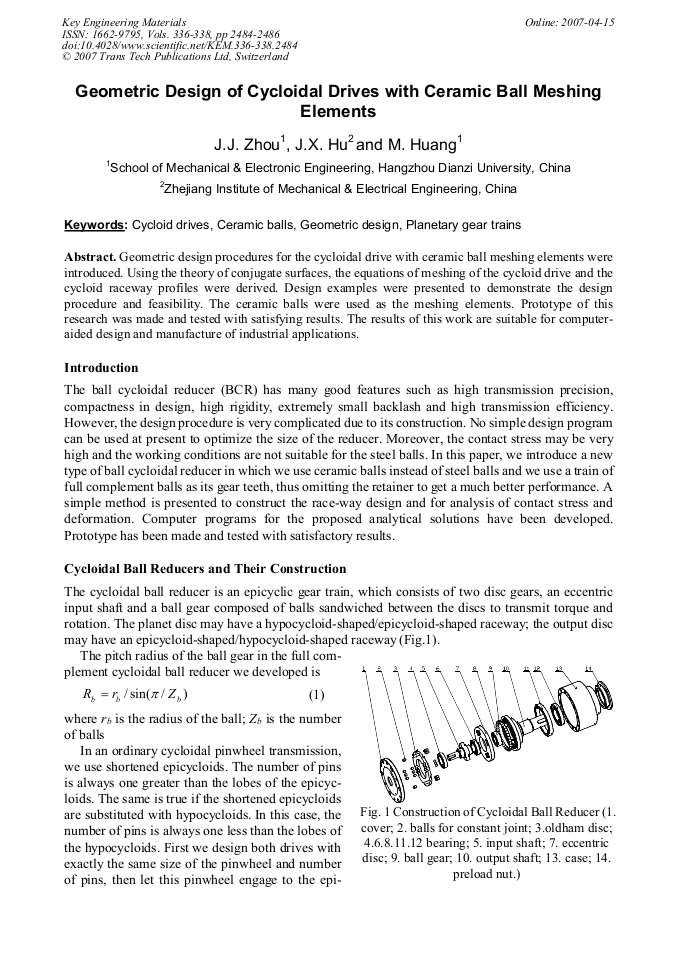

Geometric Design of Cycloidal Drives with Ceramic Ball Meshing Elements
  Abstract

Geometric design procedures for the cycloidal drive with ceramic ball meshing elements were introduced. Using the theory of conjugate surfaces, the equations of meshing of the cycloid drive and the cycloid raceway profiles were derived. Design examples were presented to demonstrate the design procedure and feasibility. The ceramic balls were used as the meshing elements. Prototype of this research was made and tested with satisfying results. The results of this work are suitable for computeraided design and manufacture of industrial applications.

  Info
Periodical
Key Engineering Materials (Volumes 336-338)
Edited by
Wei Pan and Jianghong Gong
Pages
2484-2486
DOI
10.4028/www.scientific.net/KEM.336-338.2484
Citation
J. J. Zhou, J.X. Hu, M. Huang, "Geometric Design of Cycloidal Drives with Ceramic Ball Meshing Elements", Key Engineering Materials, Vols. 336-338, pp. 2484-2486, 2007
Online since
April 2007
Export
Price
$32.00
