Paper Title:
Microstructure and Properties of WCP Reinforced Ferrous Gradient Composites
  Abstract

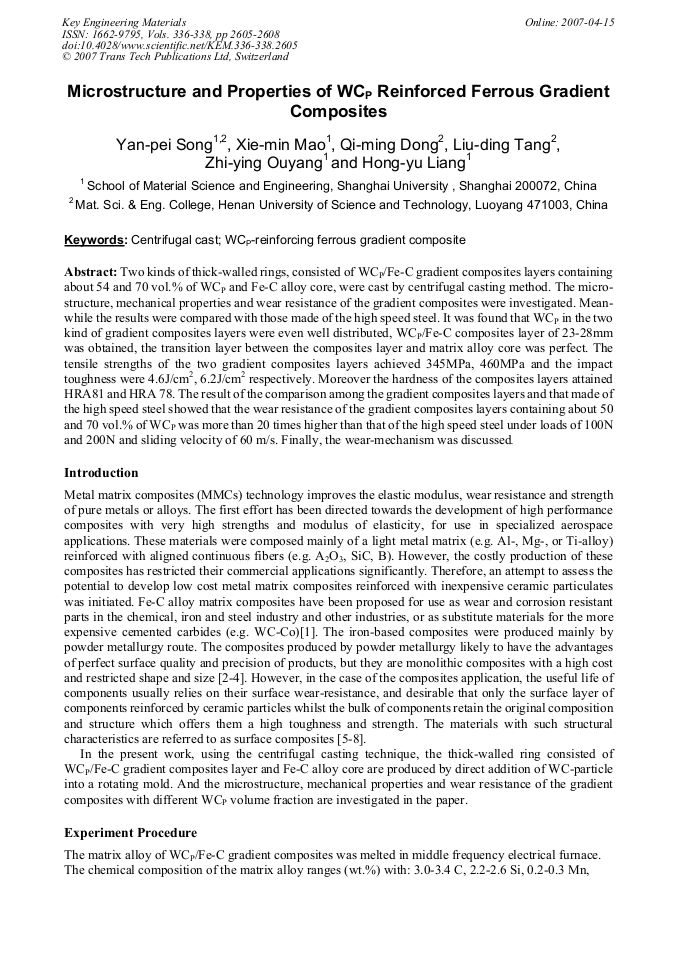

Two kinds of thick-walled rings, consisted of WCP/Fe-C gradient composites layers containing about 54 and 70 vol.% of WCP and Fe-C alloy core, were cast by centrifugal casting method. The microstructure, mechanical properties and wear resistance of the gradient composites were investigated. Meanwhile the results were compared with those made of the high speed steel. It was found that WCP in the two kind of gradient composites layers were even well distributed, WCP/Fe-C composites layer of 23-28mm was obtained, the transition layer between the composites layer and matrix alloy core was perfect. The tensile strengths of the two gradient composites layers achieved 345MPa, 460MPa and the impact toughness were 4.6J/cm2, 6.2J/cm2 respectively. Moreover the hardness of the composites layers attained HRA81 and HRA 78. The result of the comparison among the gradient composites layers and that made of the high speed steel showed that the wear resistance of the gradient composites layers containing about 50 and 70 vol.% of WCP was more than 20 times higher than that of the high speed steel under loads of 100N and 200N and sliding velocity of 60 m/s. Finally, the wear-mechanism was discussed.

  Info
Periodical
Key Engineering Materials (Volumes 336-338)
Edited by
Wei Pan and Jianghong Gong
Pages
2605-2608
DOI
10.4028/www.scientific.net/KEM.336-338.2605
Citation
Y. P. Song, X. M. Mao, Q. M. Dong, L. D. Tang, Z. Y. Ouyang, H. Y. Liang, "Microstructure and Properties of WCP Reinforced Ferrous Gradient Composites", Key Engineering Materials, Vols. 336-338, pp. 2605-2608, 2007
Online since
April 2007
Export
Price
$32.00
Share

In order to see related information, you need to Login.

In order to see related information, you need to Login.

Authors: Y.Z. Zhan, Guo Ding Zhang
227
Authors: De Chun Lou, Jan K. Solberg, Odd Magne Akselsen, Nina Dahl
Abstract:In this paper, new steel matrix composites have been developed by powder metallurgy/HIP and abrasive wear and aluminum sticking resistance...
21
Authors: Shi Zhong Wei, Liu Jie Xu, Guo Shang Zhang, Ji Wen Li, Bao Zhu Dai
Chapter 3: Advanced Manufacturing Technology
Abstract:Mo-based composites with Al2O3 particles were developed in order to enhance the wear resistance of molybdenum alloys....
467
Authors: Zhu Rui, Yu Tao Zhao, Song Li Zhang, Zhi Hong Jia
Chapter 1: Non-Ferrous Metal Material
Abstract:Abstract:Aluminum matrx composites reinforced by in situ ZrB2 particles are fabricated from A356-AlB-K2ZrF6 system via in-situ melt reaction...
122
Authors: Dong Chen, Zhe Chen, Peng Zhang, Yi Jie Zhang, Haiheng Ma, Hao Wei Wang
Chapter 5: Metal Alloy Materials
Abstract:In-situ TiB2 particles reinforced AA7055 composites were fabricated through mixed-salts route and their bending properties were...
1005
