Paper Title:
Pulsed Micro-Electrochemical Machining Technology
  Abstract

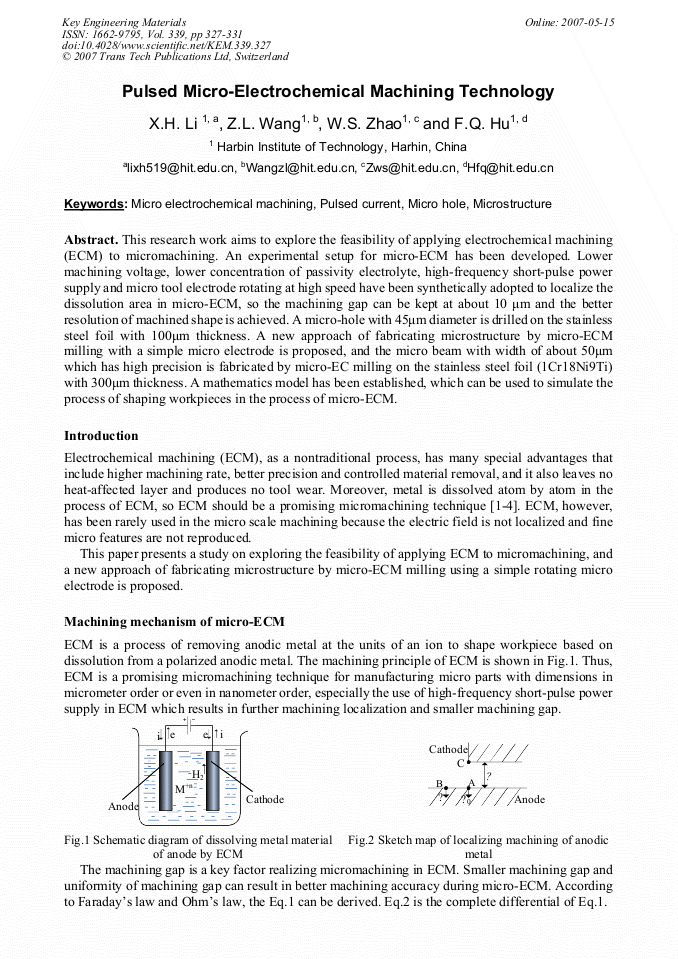

This research work aims to explore the feasibility of applying electrochemical machining (ECM) to micromachining. An experimental setup for micro-ECM has been developed. Lower machining voltage, lower concentration of passivity electrolyte, high-frequency short-pulse power supply and micro tool electrode rotating at high speed have been synthetically adopted to localize the dissolution area in micro-ECM, so the machining gap can be kept at about 10 μm and the better resolution of machined shape is achieved. A micro-hole with 45μm diameter is drilled on the stainless steel foil with 100μm thickness. A new approach of fabricating microstructure by micro-ECM milling with a simple micro electrode is proposed, and the micro beam with width of about 50μm which has high precision is fabricated by micro-EC milling on the stainless steel foil (1Cr18Ni9Ti) with 300μm thickness. A mathematics model has been established, which can be used to simulate the process of shaping workpieces in the process of micro-ECM.

  Info
Periodical
Edited by
Shen Dong and Yingxue Yao
Pages
327-331
DOI
10.4028/www.scientific.net/KEM.339.327
Citation
X. H. Li, Z. L. Wang, W.S. Zhao, F. Q. Hu, "Pulsed Micro-Electrochemical Machining Technology", Key Engineering Materials, Vol. 339, pp. 327-331, 2007
Online since
May 2007
