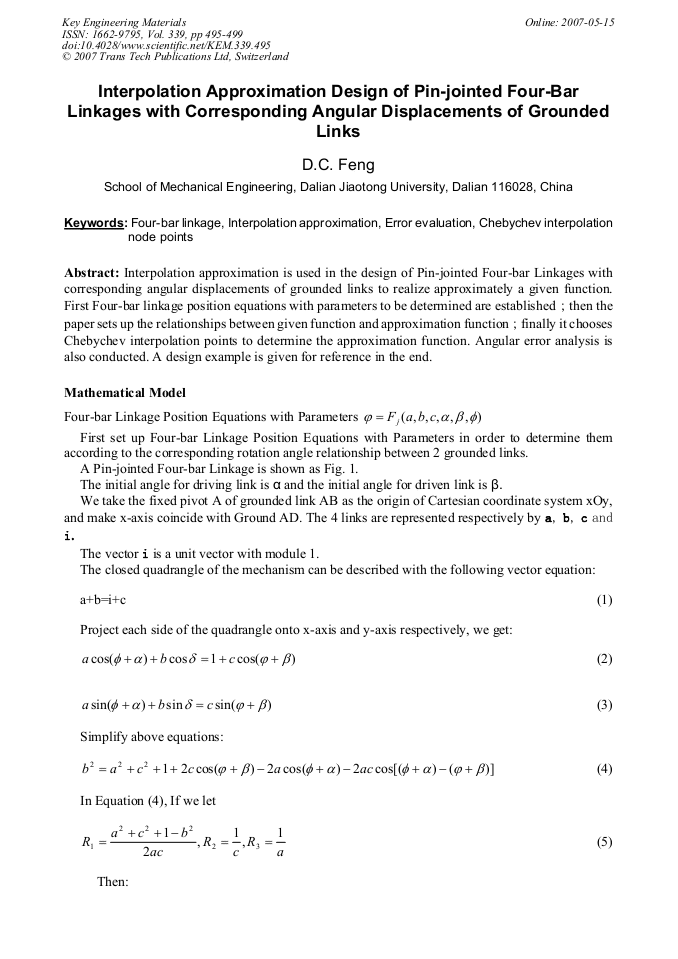

Paper Title:
Interpolation Approximation Design of Pin-Jointed Four-Bar Linkages with Corresponding Angular Displacements of Grounded Links
  Abstract

Interpolation approximation is used in the design of Pin-jointed Four-bar Linkages with corresponding angular displacements of grounded links to realize approximately a given function. First Four-bar linkage position equations with parameters to be determined are established;then the paper sets up the relationships between given function and approximation function;finally it chooses Chebychev interpolation points to determine the approximation function. Angular error analysis is also conducted. A design example is given for reference in the end.

  Info
Periodical
Edited by
Shen Dong and Yingxue Yao
Pages
495-499
DOI
10.4028/www.scientific.net/KEM.339.495
Citation
D.C. Feng, "Interpolation Approximation Design of Pin-Jointed Four-Bar Linkages with Corresponding Angular Displacements of Grounded Links", Key Engineering Materials, Vol. 339, pp. 495-499, 2007
Online since
May 2007
