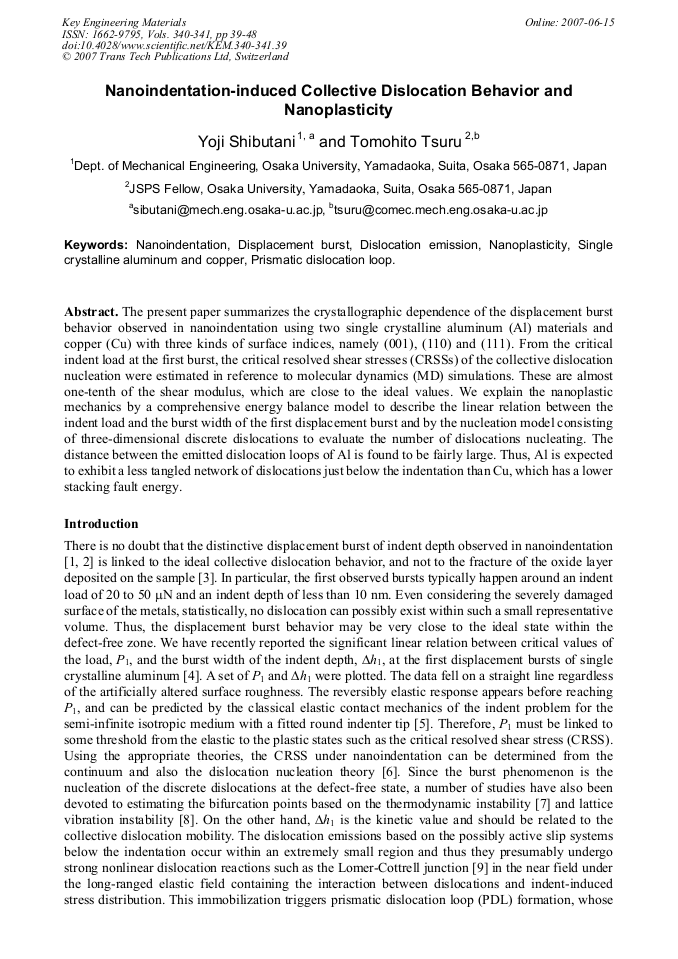

The present paper summarizes the crystallographic dependence of the displacement burst behavior observed in nanoindentation using two single crystalline aluminum (Al) materials and copper (Cu) with three kinds of surface indices, namely (001), (110) and (111). From the critical indent load at the first burst, the critical resolved shear stresses (CRSSs) of the collective dislocation nucleation were estimated in reference to molecular dynamics (MD) simulations. These are almost one-tenth of the shear modulus, which are close to the ideal values. We explain the nanoplastic mechanics by a comprehensive energy balance model to describe the linear relation between the indent load and the burst width of the first displacement burst and by the nucleation model consisting of three-dimensional discrete dislocations to evaluate the number of dislocations nucleating. The distance between the emitted dislocation loops of Al is found to be fairly large. Thus, Al is expected to exhibit a less tangled network of dislocations just below the indentation than Cu, which has a lower stacking fault energy.
