Paper Title:
Stamping of One-Piece Automobile Steel Wheels from Tube

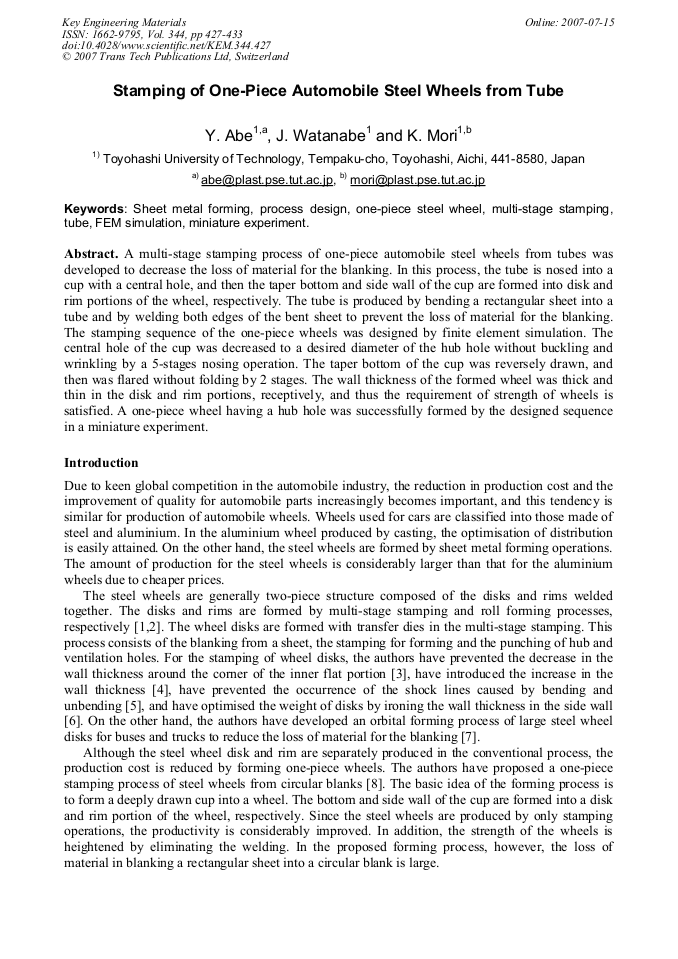

  Abstract

A multi-stage stamping process of one-piece automobile steel wheels from tubes was developed to decrease the loss of material for the blanking. In this process, the tube is nosed into a cup with a central hole, and then the taper bottom and side wall of the cup are formed into disk and rim portions of the wheel, respectively. The tube is produced by bending a rectangular sheet into a tube and by welding both edges of the bent sheet to prevent the loss of material for the blanking. The stamping sequence of the one-piece wheels was designed by finite element simulation. The central hole of the cup was decreased to a desired diameter of the hub hole without buckling and wrinkling by a 5-stages nosing operation. The taper bottom of the cup was reversely drawn, and then was flared without folding by 2 stages. The wall thickness of the formed wheel was thick and thin in the disk and rim portions, receptively, and thus the requirement of strength of wheels is satisfied. A one-piece wheel having a hub hole was successfully formed by the designed sequence in a miniature experiment.

  Info
Periodical
Main Theme
Edited by
F. Micari, M. Geiger, J. Duflou, B. Shirvani, R. Clarke, R. Di Lorenzo and L. Fratini
Pages
427-433
DOI
10.4028/www.scientific.net/KEM.344.427
Citation
Y. Abe, J. Watanabe, K. Mori, "Stamping of One-Piece Automobile Steel Wheels from Tube", Key Engineering Materials, Vol. 344, pp. 427-433, 2007
Online since
July 2007
