Paper Title:

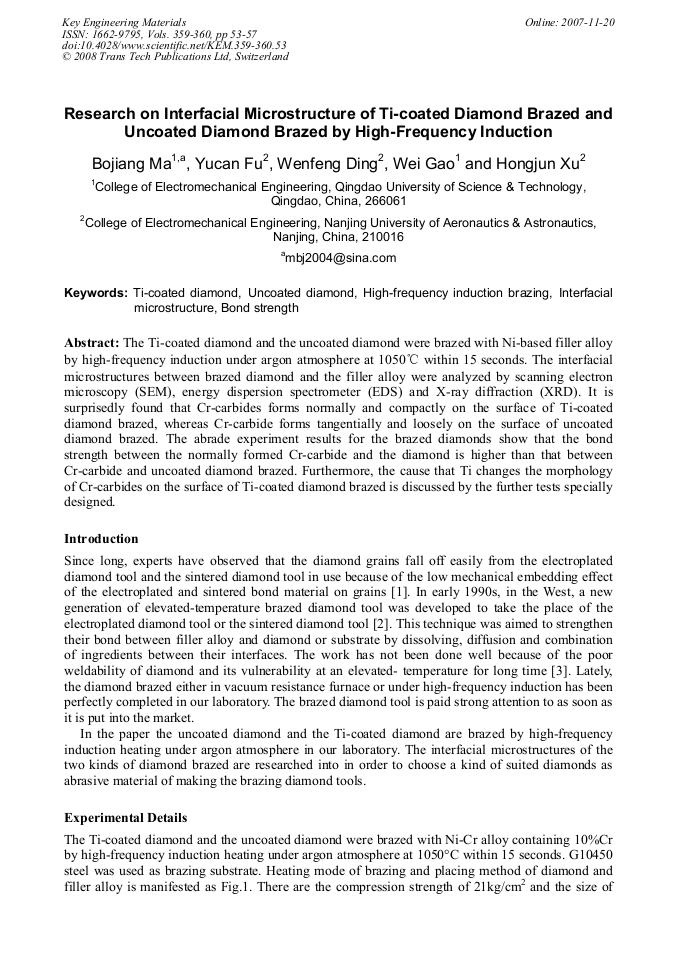

Research on Interfacial Microstructure of Ti-Coated Diamond Brazed and Uncoated Diamond Brazed by High-Frequency Induction
  Abstract

The Ti-coated diamond and the uncoated diamond were brazed with Ni-based filler alloy by high-frequency induction under argon atmosphere at 1050°C within 15 seconds. The interfacial microstructures between brazed diamond and the filler alloy were analyzed by scanning electron microscopy (SEM), energy dispersion spectrometer (EDS) and X-ray diffraction (XRD). It is surprisedly found that Cr-carbides forms normally and compactly on the surface of Ti-coated diamond brazed, whereas Cr-carbide forms tangentially and loosely on the surface of uncoated diamond brazed. The abrade experiment results for the brazed diamonds show that the bond strength between the normally formed Cr-carbide and the diamond is higher than that between Cr-carbide and uncoated diamond brazed. Furthermore, the cause that Ti changes the morphology of Cr-carbides on the surface of Ti-coated diamond brazed is discussed by the further tests specially designed.

  Info
Periodical
Key Engineering Materials (Volumes 359-360)
Edited by
Jiuhua Xu, Xipeng Xu, Guangqi Cai and Renke Kang
Pages
53-57
DOI
10.4028/www.scientific.net/KEM.359-360.53
Citation
B. J. Ma, Y. C. Fu, W. F. Ding, W. Gao, H. J. Xu, "Research on Interfacial Microstructure of Ti-Coated Diamond Brazed and Uncoated Diamond Brazed by High-Frequency Induction ", Key Engineering Materials, Vols. 359-360, pp. 53-57, 2008
Online since
November 2007
