Paper Title:

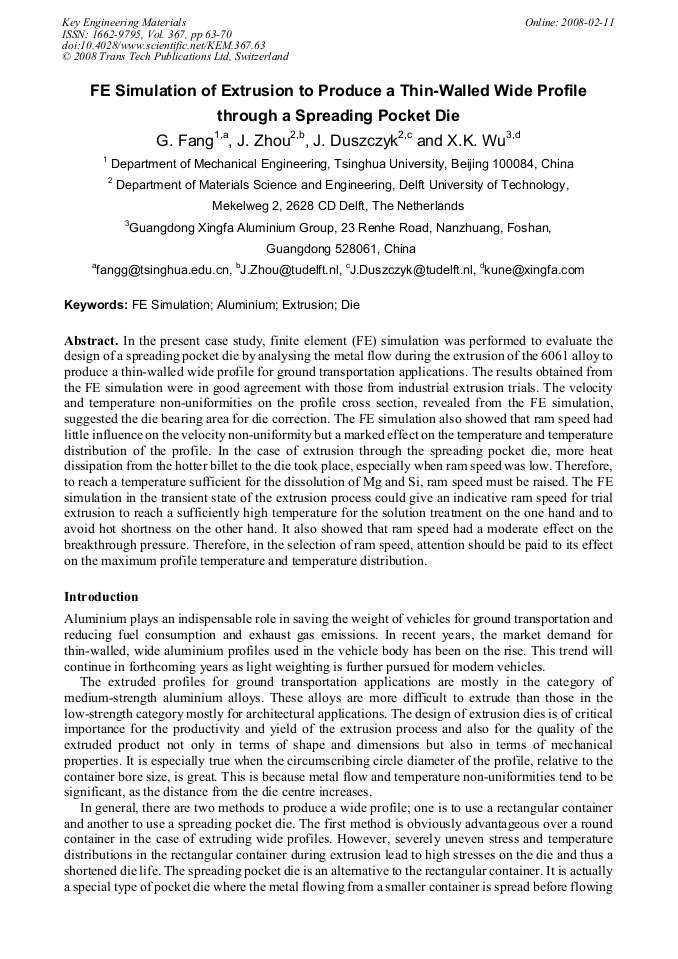

FE Simulation of Extrusion to Produce a Thin-Walled Wide Profile through a Spreading Pocket Die
  Abstract

In the present case study, finite element (FE) simulation was performed to evaluate the design of a spreading pocket die by analysing the metal flow during the extrusion of the 6061 alloy to produce a thin-walled wide profile for ground transportation applications. The results obtained from the FE simulation were in good agreement with those from industrial extrusion trials. The velocity and temperature non-uniformities on the profile cross section, revealed from the FE simulation, suggested the die bearing area for die correction. The FE simulation also showed that ram speed had little influence on the velocity non-uniformity but a marked effect on the temperature and temperature distribution of the profile. In the case of extrusion through the spreading pocket die, more heat dissipation from the hotter billet to the die took place, especially when ram speed was low. Therefore, to reach a temperature sufficient for the dissolution of Mg and Si, ram speed must be raised. The FE simulation in the transient state of the extrusion process could give an indicative ram speed for trial extrusion to reach a sufficiently high temperature for the solution treatment on the one hand and to avoid hot shortness on the other hand. It also showed that ram speed had a moderate effect on the breakthrough pressure. Therefore, in the selection of ram speed, attention should be paid to its effect on the maximum profile temperature and temperature distribution.

  Info
Periodical
Edited by
Luca Tomesani and Lorenzo Donati
Pages
63-70
DOI
10.4028/www.scientific.net/KEM.367.63
Citation
G. Fang, J. Zhou, J. Duczczyk, X.K. Wu, "FE Simulation of Extrusion to Produce a Thin-Walled Wide Profile through a Spreading Pocket Die", Key Engineering Materials, Vol. 367, pp. 63-70, 2008
Online since
February 2008
