Paper Title:
Development of Measurement System for Accuracy Control in Subsection Manufacture

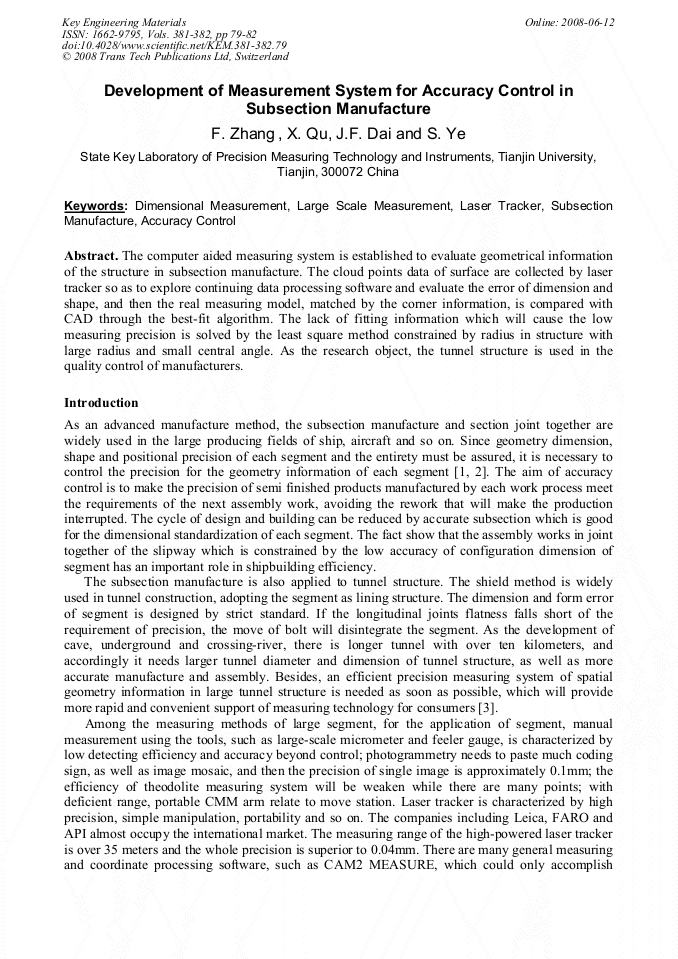

  Abstract

The computer aided measuring system is established to evaluate geometrical information of the structure in subsection manufacture. The cloud points data of surface are collected by laser tracker so as to explore continuing data processing software and evaluate the error of dimension and shape, and then the real measuring model, matched by the corner information, is compared with CAD through the best-fit algorithm. The lack of fitting information which will cause the low measuring precision is solved by the least square method constrained by radius in structure with large radius and small central angle. As the research object, the tunnel structure is used in the quality control of manufacturers.

  Info
Periodical
Key Engineering Materials (Volumes 381-382)
Edited by
Wei Gao, Yasuhiro Takaya, Yongsheng Gao and Michael Krystek
Pages
79-82
DOI
10.4028/www.scientific.net/KEM.381-382.79
Citation
F. Zhang, X. H. Qu, J.F. Dai, S. Ye, "Development of Measurement System for Accuracy Control in Subsection Manufacture", Key Engineering Materials, Vols. 381-382, pp. 79-82, 2008
Online since
June 2008
