Paper Title:

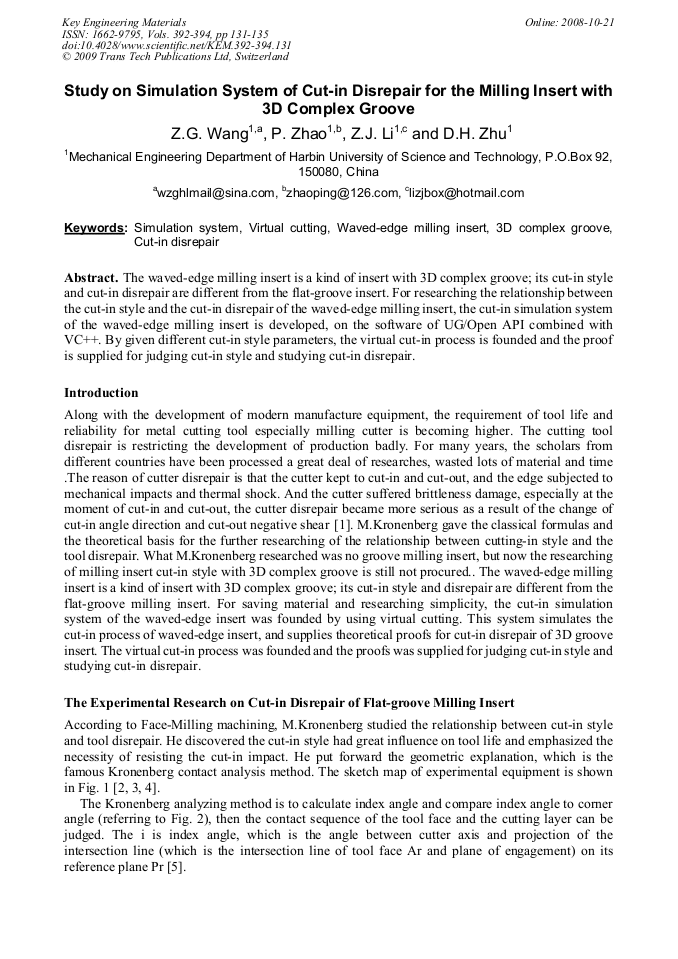

Study on Simulation System of Cut-In Disrepair for the Milling Insert with 3D Complex Groove
  Abstract

The waved-edge milling insert is a kind of insert with 3D complex groove; its cut-in style and cut-in disrepair are different from the flat-groove insert. For researching the relationship between the cut-in style and the cut-in disrepair of the waved-edge milling insert, the cut-in simulation system of the waved-edge milling insert is developed, on the software of UG/Open API combined with VC++. By given different cut-in style parameters, the virtual cut-in process is founded and the proof is supplied for judging cut-in style and studying cut-in disrepair.

  Info
Periodical
Key Engineering Materials (Volumes 392-394)
Edited by
Guanglin Wang, Huifeng Wang and Jun Liu
Pages
131-135
DOI
10.4028/www.scientific.net/KEM.392-394.131
Citation
Z. G. Wang, P. Zhao, Z. J. Li, D. H. Zhu, "Study on Simulation System of Cut-In Disrepair for the Milling Insert with 3D Complex Groove", Key Engineering Materials, Vols. 392-394, pp. 131-135, 2009
Online since
October 2008
Export
Price
$32.00
Share
