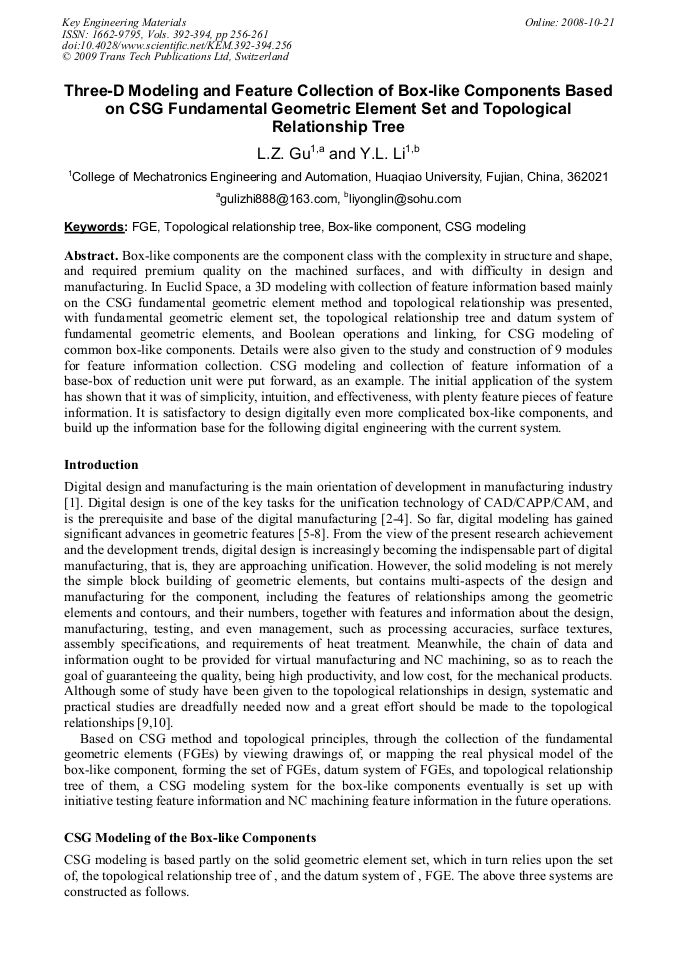

Paper Title:
Three-D Modeling and Feature Collection of Box-Like Components Based on CSG Fundamental Geometric Element Set and Topological Relationship Tree
  Abstract

Box-like components are the component class with the complexity in structure and shape, and required premium quality on the machined surfaces, and with difficulty in design and manufacturing. In Euclid Space, a 3D modeling with collection of feature information based mainly on the CSG fundamental geometric element method and topological relationship was presented, with fundamental geometric element set, the topological relationship tree and datum system of fundamental geometric elements, and Boolean operations and linking, for CSG modeling of common box-like components. Details were also given to the study and construction of 9 modules for feature information collection. CSG modeling and collection of feature information of a base-box of reduction unit were put forward, as an example. The initial application of the system has shown that it was of simplicity, intuition, and effectiveness, with plenty feature pieces of feature information. It is satisfactory to design digitally even more complicated box-like components, and build up the information base for the following digital engineering with the current system.

  Info
Periodical
Key Engineering Materials (Volumes 392-394)
Edited by
Guanglin Wang, Huifeng Wang and Jun Liu
Pages
256-261
DOI
10.4028/www.scientific.net/KEM.392-394.256
Citation
L. Z. Gu, Y. L. Li, "Three-D Modeling and Feature Collection of Box-Like Components Based on CSG Fundamental Geometric Element Set and Topological Relationship Tree", Key Engineering Materials, Vols. 392-394, pp. 256-261, 2009
Online since
October 2008
