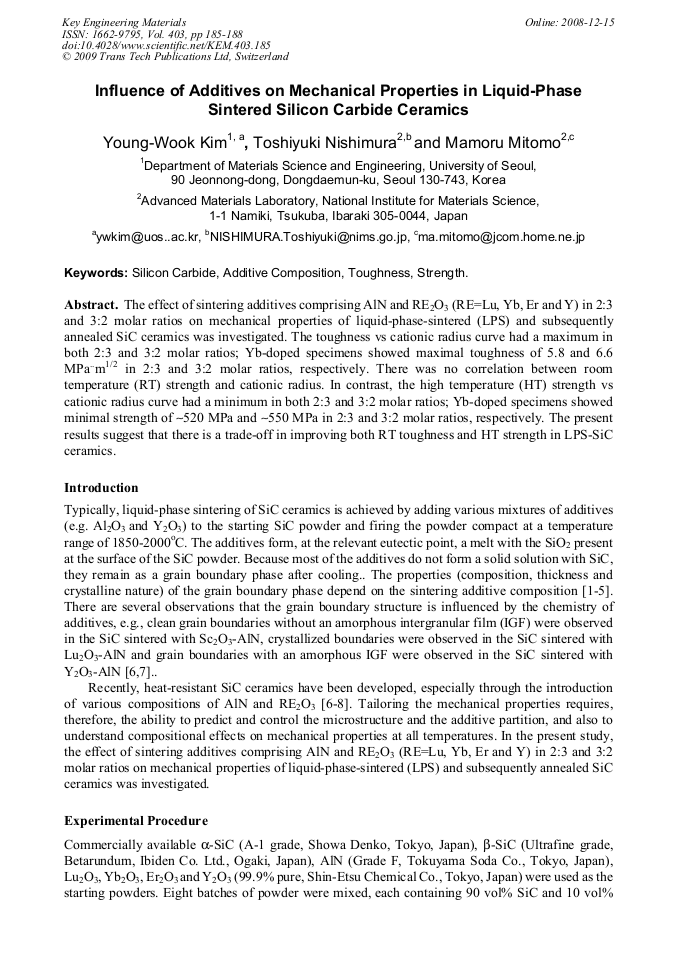

The effect of sintering additives comprising AlN and RE2O3 (RE=Lu, Yb, Er and Y) in 2:3 and 3:2 molar ratios on mechanical properties of liquid-phase-sintered (LPS) and subsequently annealed SiC ceramics was investigated. The toughness vs cationic radius curve had a maximum in both 2:3 and 3:2 molar ratios; Yb-doped specimens showed maximal toughness of 5.8 and 6.6 MPa..m1/2 in 2:3 and 3:2 molar ratios, respectively. There was no correlation between room temperature (RT) strength and cationic radius. In contrast, the high temperature (HT) strength vs cationic radius curve had a minimum in both 2:3 and 3:2 molar ratios; Yb-doped specimens showed minimal strength of 520 MPa and 550 MPa in 2:3 and 3:2 molar ratios, respectively. The present results suggest that there is a trade-off in improving both RT toughness and HT strength in LPS-SiC ceramics.
