Paper Title:

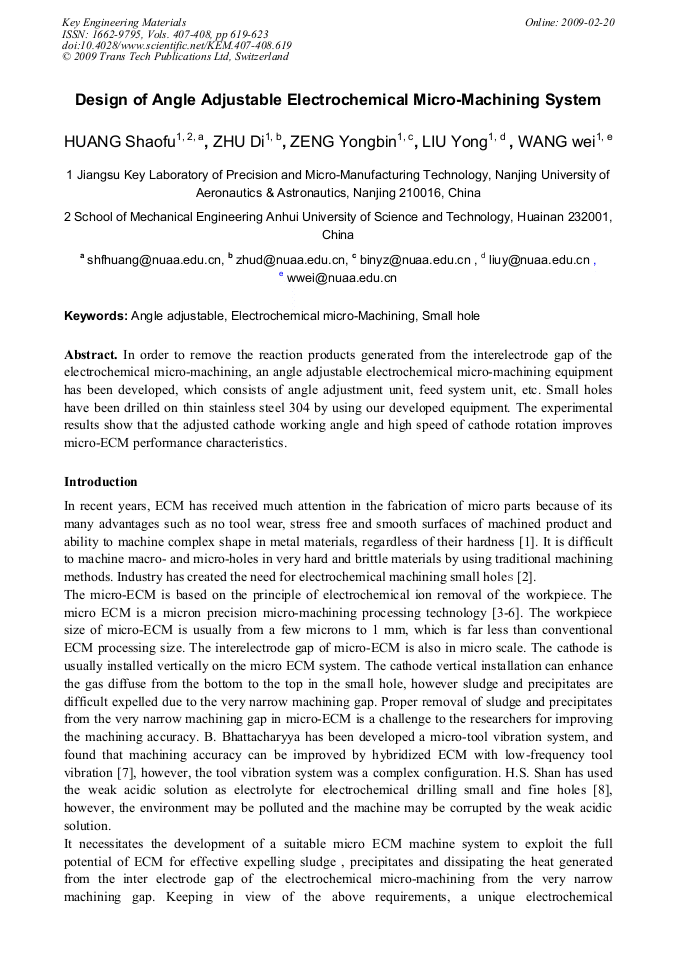

Design of Angle Adjustable Electrochemical Micro-Machining System
  Abstract

In order to remove the reaction products generated from the interelectrode gap of the electrochemical micro-machining, an angle adjustable electrochemical micro-machining equipment has been developed, which consists of angle adjustment unit, feed system unit, etc. Small holes have been drilled on thin stainless steel 304 by using our developed equipment. The experimental results show that the adjusted cathode working angle and high speed of cathode rotation improves micro-ECM performance characteristics.

  Info
Periodical
Key Engineering Materials (Volumes 407-408)
Edited by
Fan Rui, Qiao Lihong, Chen Huawei, Ochi Akio, Usuki Hiroshi and Sekiya Katsuhiko
Pages
619-623
DOI
10.4028/www.scientific.net/KEM.407-408.619
Citation
S. F. Huang, D. Zhu, Y. B. Zeng, Y. Liu, W. Wang, "Design of Angle Adjustable Electrochemical Micro-Machining System", Key Engineering Materials, Vols. 407-408, pp. 619-623, 2009
Online since
February 2009
