Paper Title:

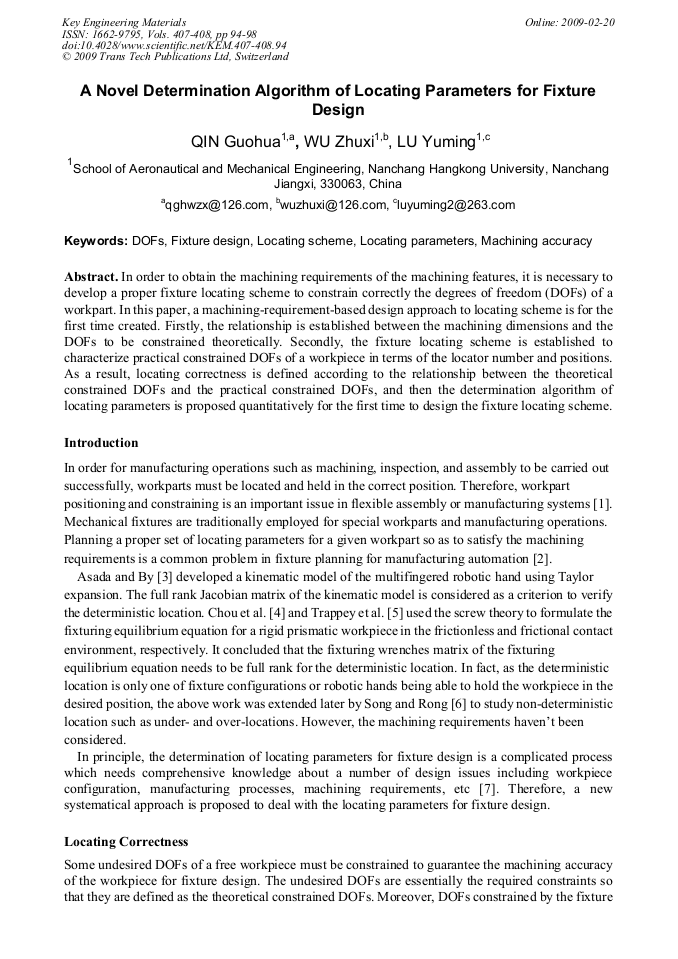

A Novel Determination Algorithm of Locating Parameters for Fixture Design
  Abstract

In order to obtain the machining requirements of the machining features, it is necessary to develop a proper fixture locating scheme to constrain correctly the degrees of freedom (DOFs) of a workpart. In this paper, a machining-requirement-based design approach to locating scheme is for the first time created. Firstly, the relationship is established between the machining dimensions and the DOFs to be constrained theoretically. Secondly, the fixture locating scheme is established to characterize practical constrained DOFs of a workpiece in terms of the locator number and positions. As a result, locating correctness is defined according to the relationship between the theoretical constrained DOFs and the practical constrained DOFs, and then the determination algorithm of locating parameters is proposed quantitatively for the first time to design the fixture locating scheme.

  Info
Periodical
Key Engineering Materials (Volumes 407-408)
Edited by
Fan Rui, Qiao Lihong, Chen Huawei, Ochi Akio, Usuki Hiroshi and Sekiya Katsuhiko
Pages
94-98
DOI
10.4028/www.scientific.net/KEM.407-408.94
Citation
G. H. Qin, Z. X. Wu, Y. M. Lu, "A Novel Determination Algorithm of Locating Parameters for Fixture Design", Key Engineering Materials, Vols. 407-408, pp. 94-98, 2009
Online since
February 2009
Export
Price
$35.00
