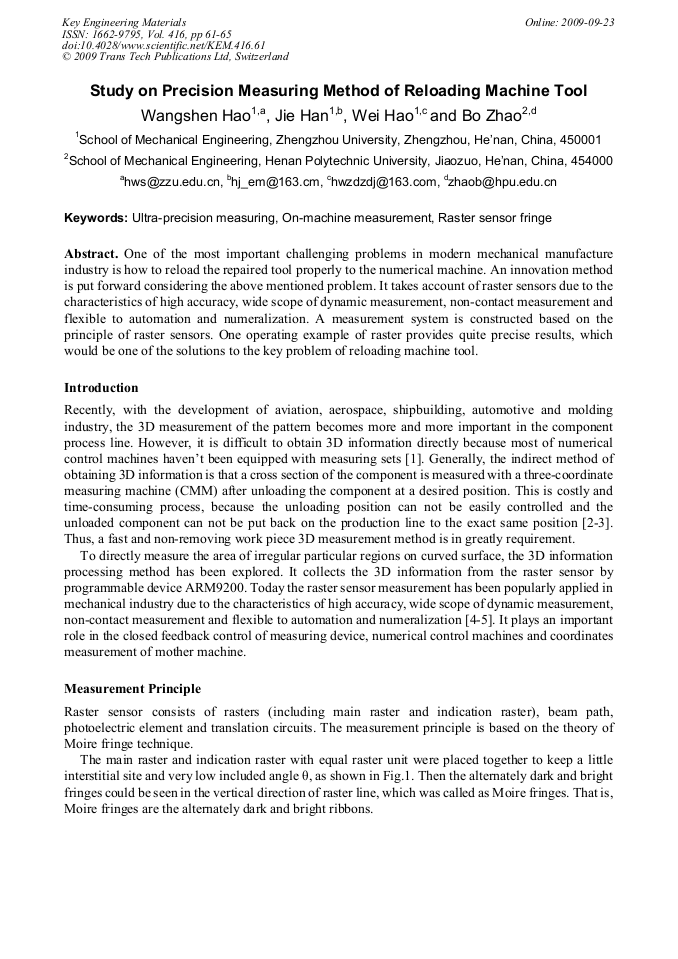

Study on Precision Measuring Method of Reloading Machine Tool

One of the most important challenging problems in modern mechanical manufacture industry is how to reload the repaired tool properly to the numerical machine. An innovation method is put forward considering the above mentioned problem. It takes account of raster sensors due to the characteristics of high accuracy, wide scope of dynamic measurement, non-contact measurement and flexible to automation and numeralization. A measurement system is constructed based on the principle of raster sensors. One operating example of raster provides quite precise results, which would be one of the solutions to the key problem of reloading machine tool.
