Paper Title:

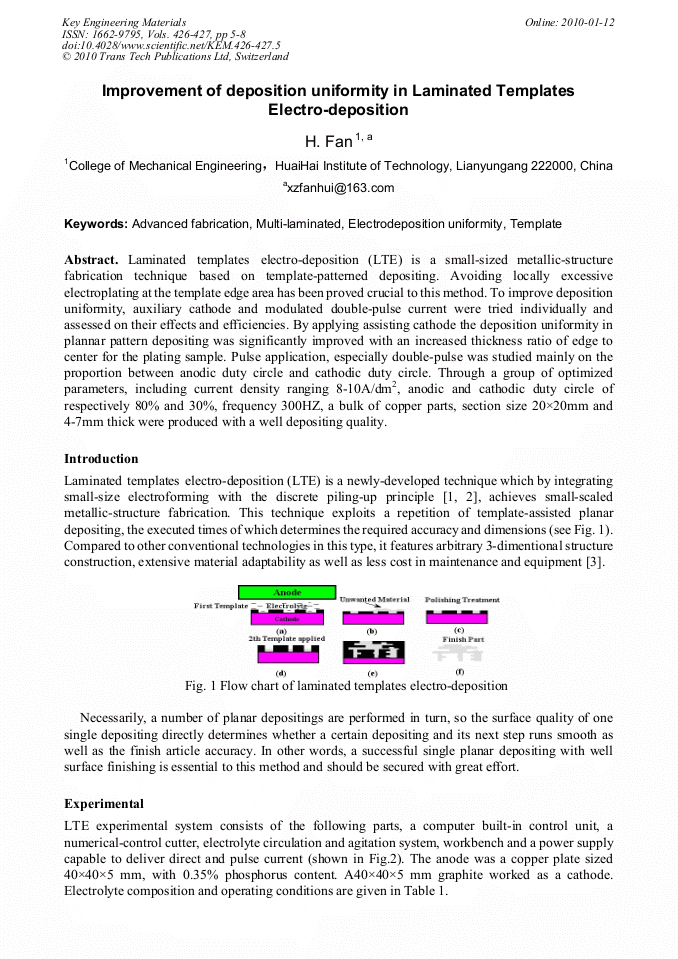

Improvement of Deposition Uniformity in Laminated Templates Electro-Deposition
  Abstract

Laminated templates electro-deposition (LTE) is a small-sized metallic-structure fabrication technique based on template-patterned depositing. Avoiding locally excessive electroplating at the template edge area has been proved crucial to this method. To improve deposition uniformity, auxiliary cathode and modulated double-pulse current were tried individually and assessed on their effects and efficiencies. By applying assisting cathode the deposition uniformity in plannar pattern depositing was significantly improved with an increased thickness ratio of edge to center for the plating sample. Pulse application, especially double-pulse was studied mainly on the proportion between anodic duty circle and cathodic duty circle. Through a group of optimized parameters, including current density ranging 8-10A/dm2, anodic and cathodic duty circle of respectively 80% and 30%, frequency 300HZ, a bulk of copper parts, section size 20×20mm and 4-7mm thick were produced with a well depositing quality.

  Info
Periodical
Key Engineering Materials (Volumes 426-427)
Edited by
Dunwen Zuo, Hun Guo, Guoxing Tang, Weidong Jin, Chunjie Liu and Chun Su
Pages
5-8
DOI
10.4028/www.scientific.net/KEM.426-427.5
Citation
H. Fan, "Improvement of Deposition Uniformity in Laminated Templates Electro-Deposition", Key Engineering Materials, Vols. 426-427, pp. 5-8, 2010
Online since
January 2010
Authors
Export
Price
$32.00
