Paper Title:

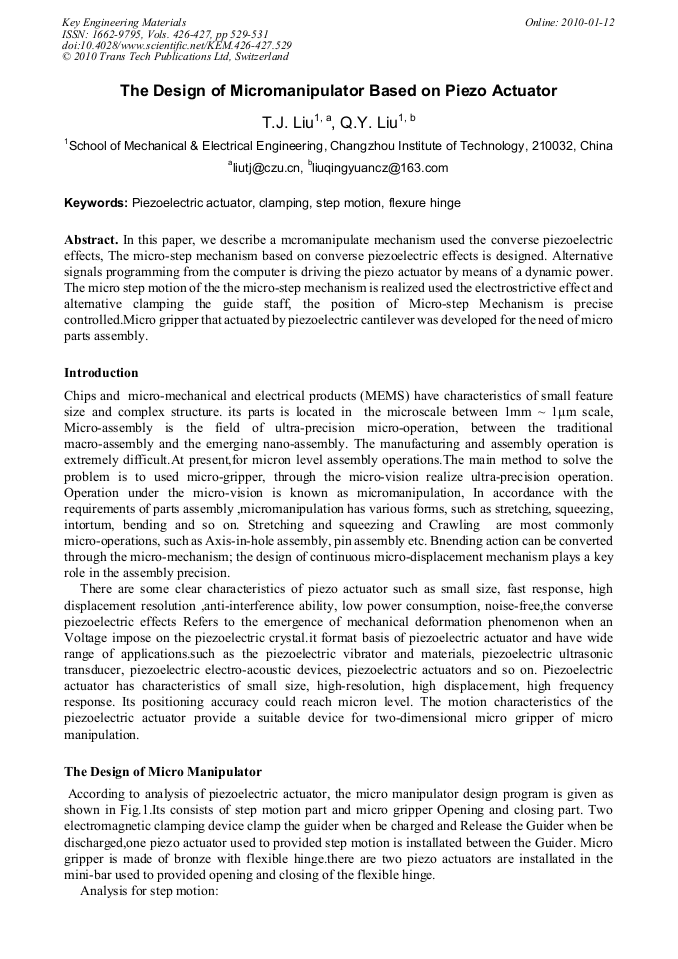

The Design of Micromanipulator Based on Piezo Actuator
  Abstract

In this paper, we describe a mcromanipulate mechanism used the converse piezoelectric effects, The micro-step mechanism based on converse piezoelectric effects is designed. Alternative signals programming from the computer is driving the piezo actuator by means of a dynamic power. The micro step motion of the the micro-step mechanism is realized used the electrostrictive effect and alternative clamping the guide staff, the position of Micro-step Mechanism is precise controlled.Micro gripper that actuated by piezoelectric cantilever was developed for the need of micro parts assembly.

  Info
Periodical
Key Engineering Materials (Volumes 426-427)
Edited by
Dunwen Zuo, Hun Guo, Guoxing Tang, Weidong Jin, Chunjie Liu and Chun Su
Pages
529-531
DOI
10.4028/www.scientific.net/KEM.426-427.529
Citation
T.J. Liu, Q.Y. Liu, "The Design of Micromanipulator Based on Piezo Actuator", Key Engineering Materials, Vols. 426-427, pp. 529-531, 2010
Online since
January 2010
