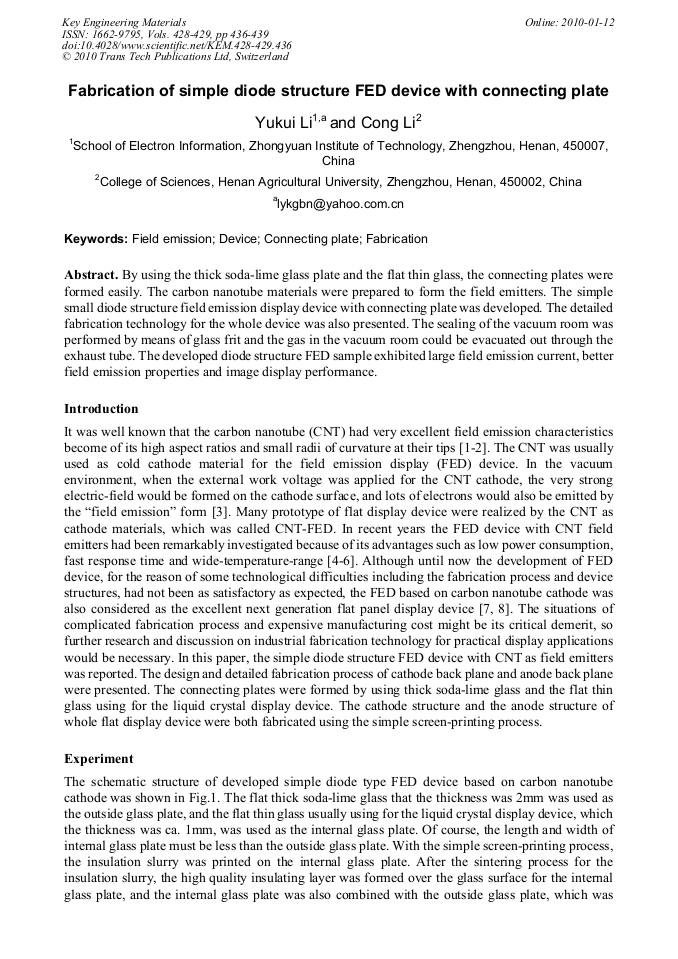

By using the thick soda-lime glass plate and the flat thin glass, the connecting plates were formed easily. The carbon nanotube materials were prepared to form the field emitters. The simple small diode structure field emission display device with connecting plate was developed. The detailed fabrication technology for the whole device was also presented. The sealing of the vacuum room was performed by means of glass frit and the gas in the vacuum room could be evacuated out through the exhaust tube. The developed diode structure FED sample exhibited large field emission current, better field emission properties and image display performance.
