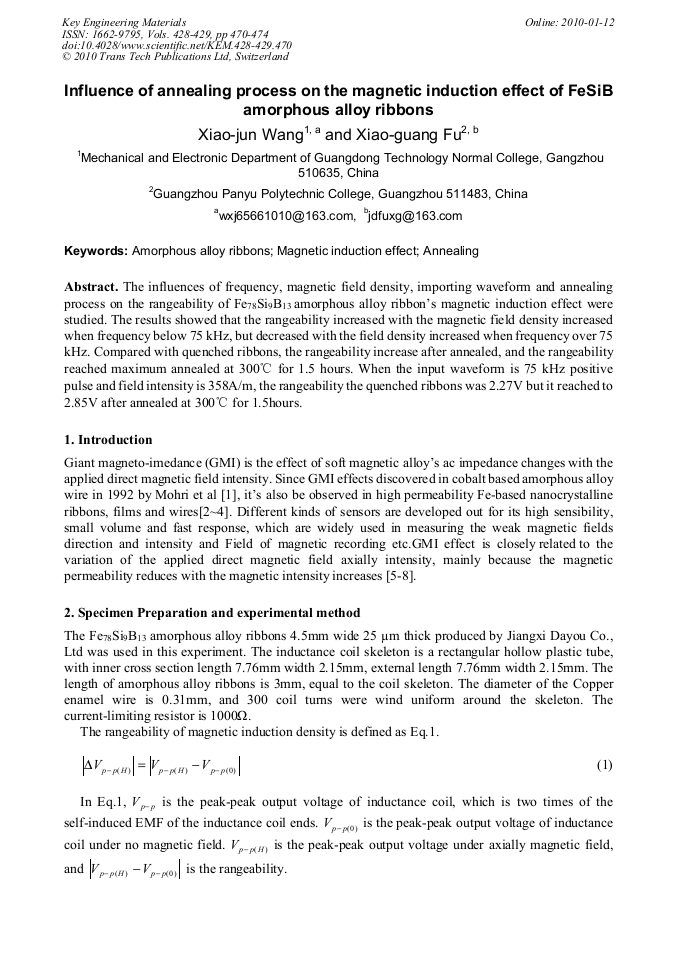

Paper Title:
Influence of Annealing Process on the Magnetic Induction Effect of FeSiB Amorphous Alloy Ribbons
  Abstract

The influences of frequency, magnetic field density, importing waveform and annealing process on the rangeability of Fe78Si9B13 amorphous alloy ribbon’s magnetic induction effect were studied. The results showed that the rangeability increased with the magnetic field density increased when frequency below 75 kHz, but decreased with the field density increased when frequency over 75 kHz. Compared with quenched ribbons, the rangeability increase after annealed, and the rangeability reached maximum annealed at 300°C for 1.5 hours. When the input waveform is 75 kHz positive pulse and field intensity is 358A/m, the rangeability the quenched ribbons was 2.27V but it reached to 2.85V after annealed at 300°C for 1.5hours.

  Info
Periodical
Key Engineering Materials (Volumes 428-429)
Edited by
Yuan Ming Huang
Pages
470-474
DOI
10.4028/www.scientific.net/KEM.428-429.470
Citation
X. J. Wang, X. G. Fu, "Influence of Annealing Process on the Magnetic Induction Effect of FeSiB Amorphous Alloy Ribbons", Key Engineering Materials, Vols. 428-429, pp. 470-474, 2010
Online since
January 2010
Export
Price
$32.00
Share

In order to see related information, you need to Login.

In order to see related information, you need to Login.

Authors: Wen Jun He, Guang Hui Min, Oleg V. Tolochko
Abstract:Crystal structures and shape memory properties of Ti-rich Ti52Ni23Cu25 (at.%) ribbon annealed at 450°C for 10 min and 1 h were investigated...
2259
Authors: Yan Wu, Yan Lu, Xiang Zhao, Liang Zuo
Abstract:The effect of magnetic field on diffusion behavior of carbon in pure iron was investigated. The results showed that the magnetic field can...
67
Authors: Gui Xia Dong, Wei Liu
Chapter 1: Materials Properties
Abstract:The electrical and dielectric properties of Ba0.3Sr0.7TiO3 (BST), as a function of annealed temperature and oxygen partial...
1059
Authors: Xiao Hua Sun, Shuang Hou, Zhi Meng Luo, Cai Hua Huang, Zong Zhi Hu
Chapter 1: Engineering Science for Manufacturing
Abstract:Bismuth zinc niobate titanium (Bi1.5Zn0.5 Nb0.5Ti1.5O7) (BZNT) thin films were deposited on PtTiSiO2Si substrates by radio frequency (rf)...
211
Authors: Mei Ling Fang, Jie Zhu, Ji Heng Li, Chao Gan, Ming Ming Li, Xue Xu Gao
Chapter 1: Materials Engineering and Materials Processing
Abstract:The influence of heat treatment on damping capacity of (Fe83Ga17)99.5B0.5 wires was investigated...
165
