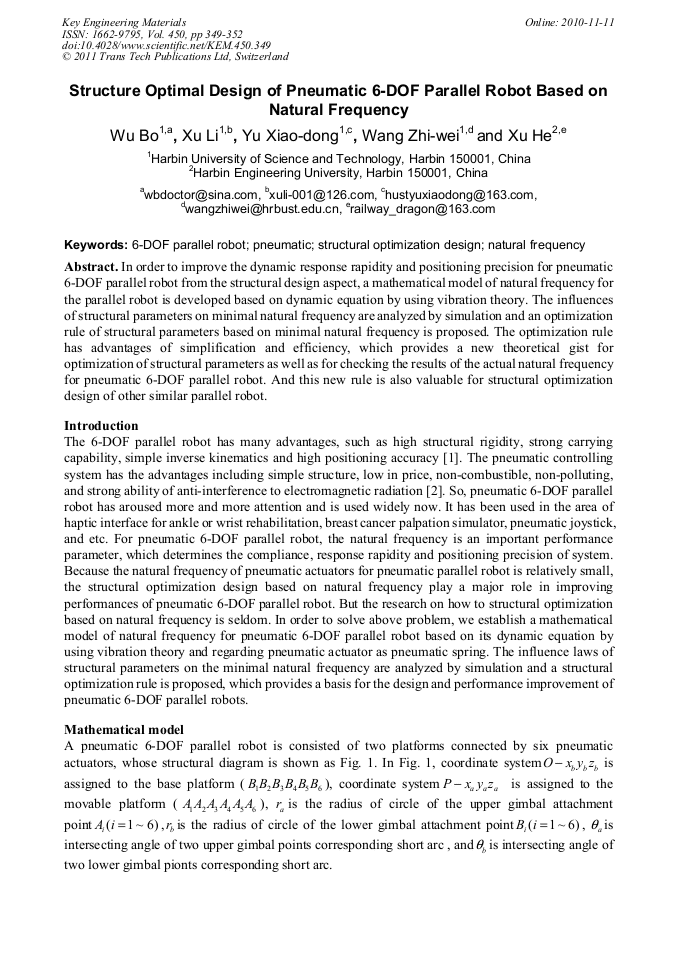

Paper Title:
Structure Optimal Design of Pneumatic 6-DOF Parallel Robot Based on Natural Frequency
  Abstract

. In order to improve the dynamic response rapidity and positioning precision for pneumatic 6-DOF parallel robot from the structural design aspect, a mathematical model of natural frequency for the parallel robot is developed based on dynamic equation by using vibration theory. The influences of structural parameters on minimal natural frequency are analyzed by simulation and an optimization rule of structural parameters based on minimal natural frequency is proposed. The optimization rule has advantages of simplification and efficiency, which provides a new theoretical gist for optimization of structural parameters as well as for checking the results of the actual natural frequency for pneumatic 6-DOF parallel robot. And this new rule is also valuable for structural optimization design of other similar parallel robot.

  Info
Periodical
Edited by
Daizhong Su, Qingbin Zhang and Shifan Zhu
Pages
349-352
DOI
10.4028/www.scientific.net/KEM.450.349
Citation
B. Wu, L. Xu, X. D. Yu, Z. W. Wang, H. Xu, "Structure Optimal Design of Pneumatic 6-DOF Parallel Robot Based on Natural Frequency", Key Engineering Materials, Vol. 450, pp. 349-352, 2011
Online since
November 2010
