Paper Title:

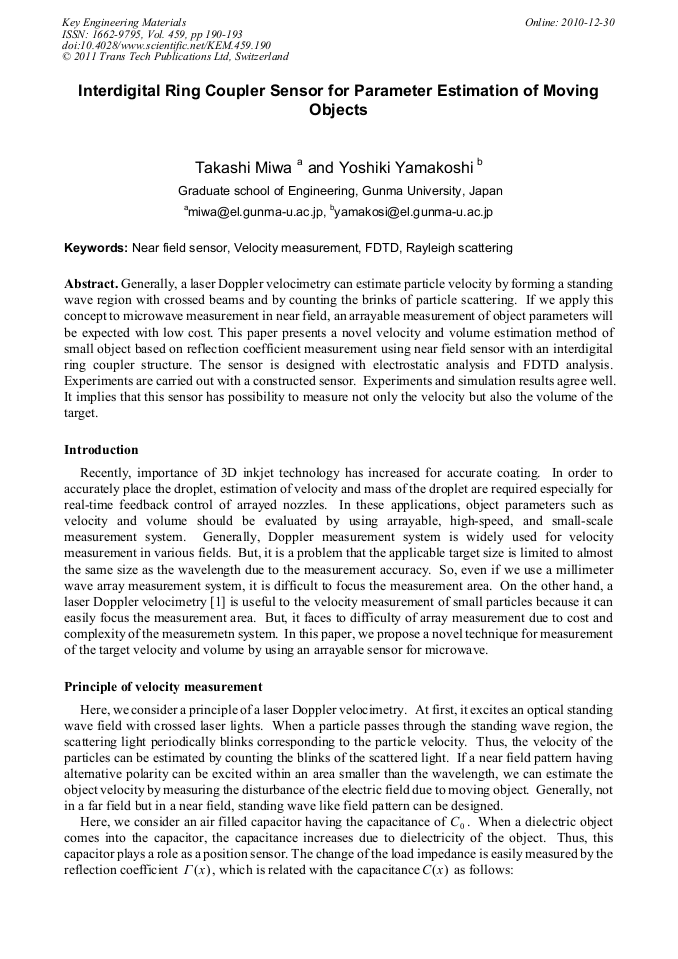

Interdigital Ring Coupler Sensor for Parameter Estimation of Moving Objects
  Abstract

Generally, a laser Doppler velocimetry can estimate particle velocity by forming a standing wave region with crossed beams and by counting the brinks of particle scattering. If we apply this concept to microwave measurement in near field, an arrayable measurement of object parameters will be expected with low cost. This paper presents a novel velocity and volume estimation method of small object based on reflection coefficient measurement using near field sensor with an interdigital ring coupler structure. The sensor is designed with electrostatic analysis and FDTD analysis. Experiments are carried out with a constructed sensor. Experiments and simulation results agree well. It implies that this sensor has possibility to measure not only the velocity but also the volume of the target.

  Info
Periodical
Edited by
Osamu Hanaizumi and Masafumi Unno
Pages
190-193
DOI
10.4028/www.scientific.net/KEM.459.190
Citation
T. Miwa, Y. Yamakoshi, "Interdigital Ring Coupler Sensor for Parameter Estimation of Moving Objects", Key Engineering Materials, Vol. 459, pp. 190-193, 2011
Online since
December 2010
Export
Price
$32.00
