Paper Title:

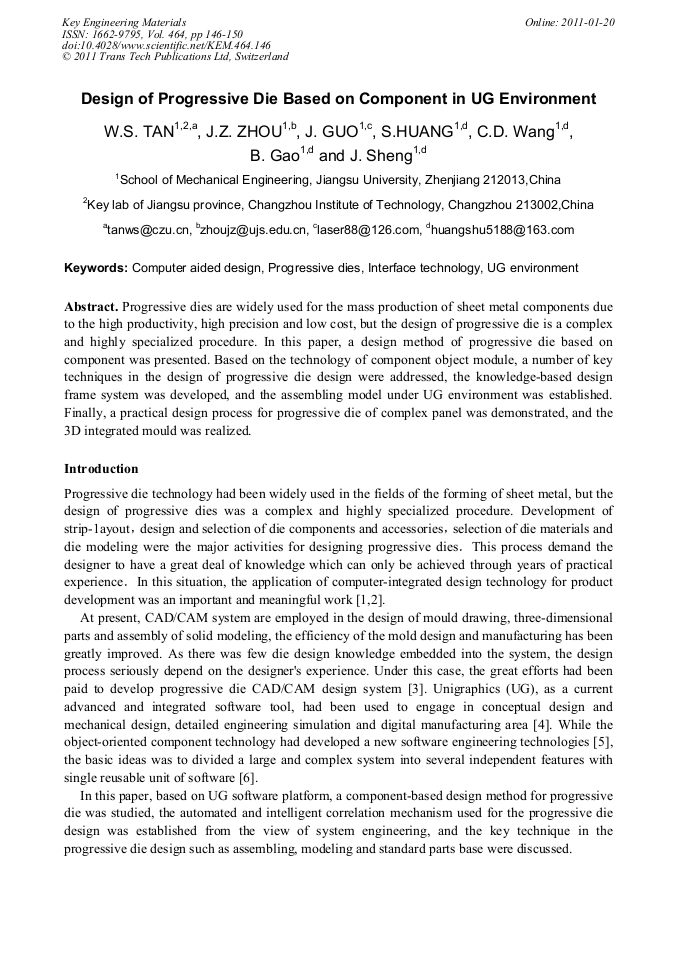

Design of Progressive Die Based on Component in UG Environment
  Abstract

. Progressive dies are widely used for the mass production of sheet metal components due to the high productivity, high precision and low cost, but the design of progressive die is a complex and highly specialized procedure. In this paper, a design method of progressive die based on component was presented. Based on the technology of component object module, a number of key techniques in the design of progressive die design were addressed, the knowledge-based design frame system was developed, and the assembling model under UG environment was established. Finally, a practical design process for progressive die of complex panel was demonstrated, and the 3D integrated mould was realized.

  Info
Periodical
Edited by
Long Chen, Yongkang Zhang, Aixing Feng, Zhenying Xu, Boquan Li and Han Shen
Pages
146-150
DOI
10.4028/www.scientific.net/KEM.464.146
Citation
W.S. Tan, J. Z. Zhou, J. Guo, S. Huang, C. D. Wang, B. Gao, J. Sheng, "Design of Progressive Die Based on Component in UG Environment", Key Engineering Materials, Vol. 464, pp. 146-150, 2011
Online since
January 2011
Export
Price
$32.00
