Paper Title:

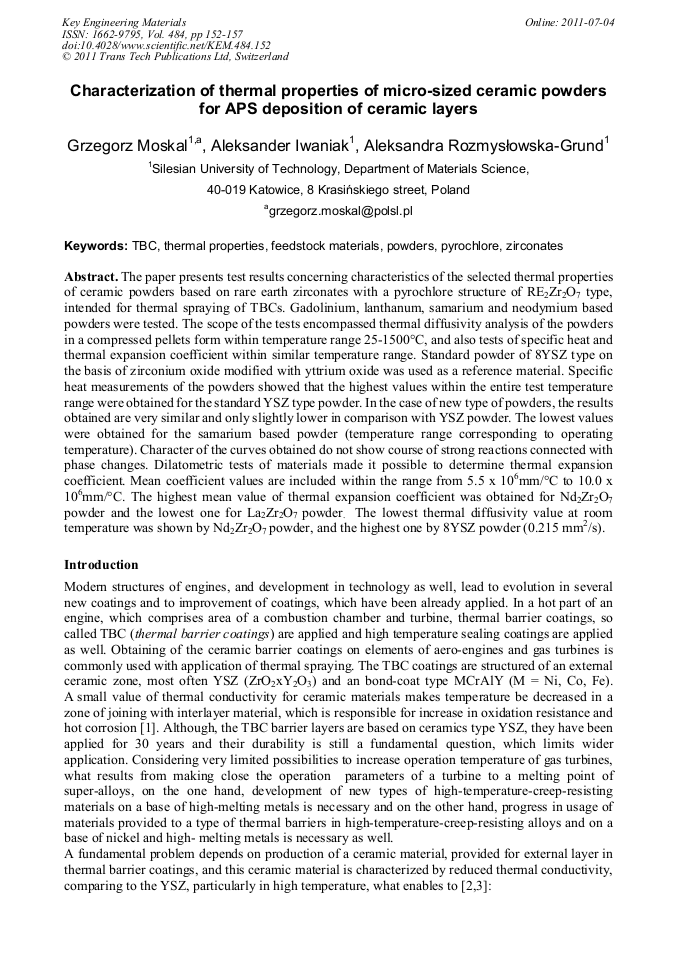

Characterization of Thermal Properties of Micro-Sized Ceramic Powders for APS Deposition of Ceramic Layers
  Abstract

The paper presents test results concerning characteristics of the selected thermal properties of ceramic powders based on rare earth zirconates with a pyrochlore structure of RE2Zr2O7 type, intended for thermal spraying of TBCs. Gadolinium, lanthanum, samarium and neodymium based powders were tested. The scope of the tests encompassed thermal diffusivity analysis of the powders in a compressed pellets form within temperature range 25-1500°C, and also tests of specific heat and thermal expansion coefficient within similar temperature range. Standard powder of 8YSZ type on the basis of zirconium oxide modified with yttrium oxide was used as a reference material. Specific heat measurements of the powders showed that the highest values within the entire test temperature range were obtained for the standard YSZ type powder. In the case of new type of powders, the results obtained are very similar and only slightly lower in comparison with YSZ powder. The lowest values were obtained for the samarium based powder (temperature range corresponding to operating temperature). Character of the curves obtained do not show course of strong reactions connected with phase changes. Dilatometric tests of materials made it possible to determine thermal expansion coefficient. Mean coefficient values are included within the range from 5.5 x 106mm/°C to 10.0 x 106mm/°C. The highest mean value of thermal expansion coefficient was obtained for Nd2Zr2O7 powder and the lowest one for La2Zr2O7 powder. The lowest thermal diffusivity value at room temperature was shown by Nd2Zr2O7 powder, and the highest one by 8YSZ powder (0.215 mm2/s).

  Info
Periodical
Edited by
Takashi Goto, Yi-Bing Cheng and Takashi Akatsu
Pages
152-157
DOI
10.4028/www.scientific.net/KEM.484.152
Citation
G. Moskal, A. Iwaniak, A. Rozmysłowska-Grund, "Characterization of Thermal Properties of Micro-Sized Ceramic Powders for APS Deposition of Ceramic Layers", Key Engineering Materials, Vol. 484, pp. 152-157, 2011
Online since
July 2011
Export
Price
$32.00
Share

In order to see related information, you need to Login.

In order to see related information, you need to Login.

Authors: Sung Doo Hwang, Wang Kee Min, Ik Min Park, Young Do Park, Young Seok Kim, Yong Ho Park
Abstract:P-type thermoelectric material Si0.8Ge0.2 was fabricated by mechanical alloying(MA) and Hot-Press Process(HP) The effect of Boron(0.25~2wt%)...
745
Authors: Min Zhou, Jing Feng Li, Jing Liu
Abstract:The Bi2Te3 compound was synthesized by mechanical alloying (MA) of highly pure constituents of Bi and Te powders, and then was consolidated...
538
Authors: Ana Coh O. Hirschmann, Maria do Carmo de Andrade Nono, Cosme Roberto Moreira Silva
Abstract:Porous ceramics are of great interest due to their numerous potential applications. The objective of the present investigation was to produce...
161
Authors: Xian Kai Sun, Guang Hai Wang, Shi Chao Zhang, Hao Ran Sun, Kai Fang, Yu Feng Chen
Chapter 1: Technologies of Processing and Manufacturing
Abstract:Ceramic materials of (La0.5Sm0.5)2(Zr0.7Ce0.3)2O7 composition...
89
