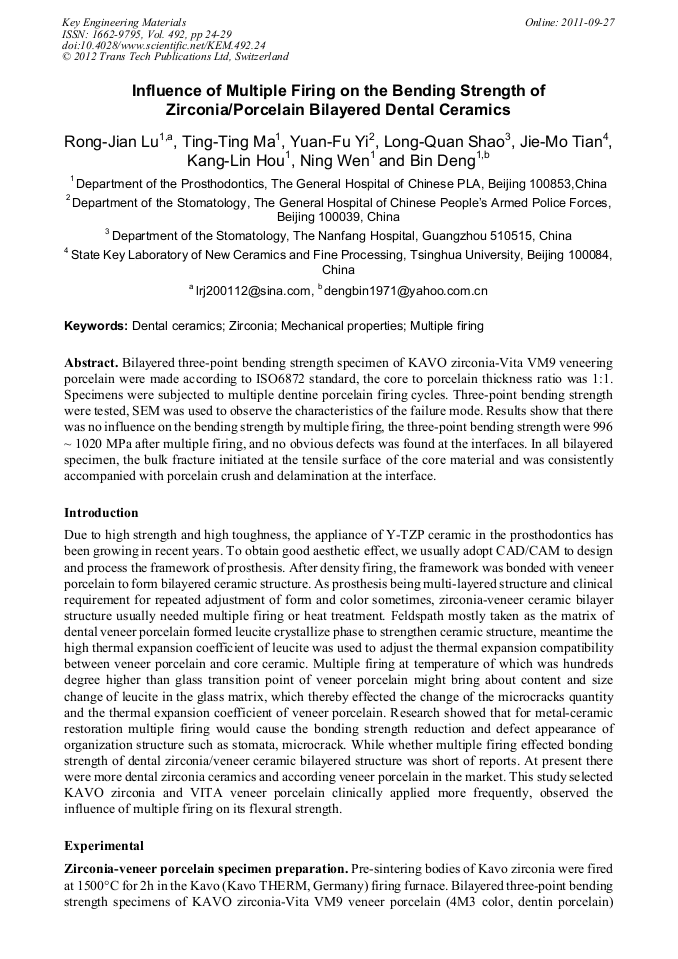

Paper Title:
Influence of Multiple Firing on the Bending Strength of Zirconia/Porcelain Bilayered Dental Ceramics
  Abstract

Bilayered three-point bending strength specimen of KAVO zirconia-Vita VM9 veneering porcelain were made according to ISO6872 standard, the core to porcelain thickness ratio was 1:1. Specimens were subjected to multiple dentine porcelain firing cycles. Three-point bending strength were tested, SEM was used to observe the characteristics of the failure mode. Results show that there was no influence on the bending strength by multiple firing, the three-point bending strength were 996 ~ 1020 MPa after multiple firing, and no obvious defects was found at the interfaces. In all bilayered specimen, the bulk fracture initiated at the tensile surface of the core material and was consistently accompanied with porcelain crush and delamination at the interface.

  Info
Periodical
Edited by
Yiwang Bao, Danyu Jiang, Li Tian and Jianghong Gong
Pages
24-29
DOI
10.4028/www.scientific.net/KEM.492.24
Citation
R. J. Lu, T. T. Ma, Y. F. Yi, L. Q. Shao, J. M. Tian, K. L. Hou, N. Wen, B. Deng, "Influence of Multiple Firing on the Bending Strength of Zirconia/Porcelain Bilayered Dental Ceramics", Key Engineering Materials, Vol. 492, pp. 24-29, 2012
Online since
September 2011
Export
Price
$32.00
Share

In order to see related information, you need to Login.

In order to see related information, you need to Login.

Authors: S.H. Lee, Gary L. Messing, D.J. Green
321
Authors: Li Wen Chen, Chia Yen Lee, Chien Hsiung Tsai, Yung Chuan Chen
Abstract:This paper studies the residual stress distributions and tip deflections of microfabricated bilayer cantilevers of varying beam thickness and...
559
Authors: Jong Keuk Park, Yong Hwa Chung, Young Do Kim, Young Joon Baik
Abstract:Al-Cr-N coatings were deposited on Si substrate by unbalanced magnetron (UBM) sputtering with Al and Cr targets and Ar and N2 reactive gases...
1305
Authors: J. Sheng, U. Welzel, Eric J. Mittemeijer
Abstract:The stress evolution during diffusion annealing of Ni-Cu bilayers (individual layer thicknesses of 50 nm) was investigated employing ex-situ...
503
Authors: Jian Bing Liu, Qiang Tang, Shen Zhou Lu, Ceng Zhang, Ming Zhong Li
Chapter 10: Biomaterials and Chemical Materials
Abstract:When the articular cartilage defect accompanies with the subchondral bone defect, using bilayer scaffolds which can integrate with...
1810
